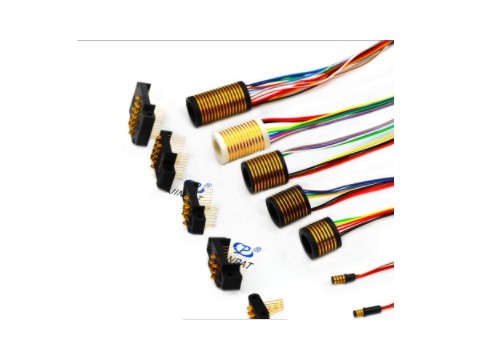

JINPAT Electronics4. If the number of industrial slip rings is large, the cylindrical slip ring is composed of upper and lower sets of brushes and a differential adapter plate, but its axial dimension is large, and the differential slip ring can significantly reduce the axis. To size, reduce volume and weight. The differential slip ring consists of two sets of upper and lower brushes and a differential adapter disk. The upper brush rotates with the antenna azimuth, and the lower brush is fixed. The differential adapter plate has two upper and lower contact pieces, and the corresponding contact piece is connected by a wire, and the differential mechanism is used to make the rotation speed 1/2 of the azimuth rotation speed. .Industrial slip rings use sliding contacts to transmit low frequency signals and energy to the slip ring assembly. A typical slip ring has a cylindrical slip ring and a differential slip ring. The conductive ring of the cylindrical slip ring is further divided into a flat ring and a V-ring. Industrial slip rings are usually made of copper, brass, coin silver and gold. The brush has a palladium, gold alloy or gold plated wire brush and a copper graphite synthetic brush. When the antenna rotates, the current flowing into each conductive slip ring flows out from the corresponding upper brush through one or two contact piece circuit high power slip rings on the differential turntable to ensure that the circuit between the fixed part and the rotating part is always connected. through. The powder worn by the sliding contact slip ring may cause a short circuit between the ring and the ring. Therefore, the industrial slip ring should be structurally guaranteed to be easy to clean, usually with a modular structure for on-site repair or replacement of components.is focused on Good service, good aftermarket Slip ring, industial Slip ring Related introduction, small Slip ring Okay?, Photoelectric slip ring Technical advantage and other projects. even though in the rapid development of the project ,JINPAT Electronics always stressed the balance between external opportunities and internal management, attaches great importance to the core competitiveness of enterprises to cultivate and shape. Our company take the value of customer service as the core competitiveness of enterprises, adhering to the honesty and integrity , the pursuit of excellence, respect individual for the corporate spirit, and strive to provide customers with integrity and reliable Slip ring.
