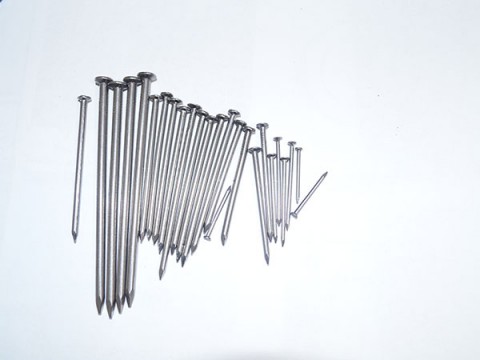

Concrete nail
Details
Material: Q195, Q215 wire rod as high-quality low-carbon-steel
Finish: Polished common nail, electric galvanized common nail, hot dipped galvanized common nail
Head: common head, countersunk head, lose head, flat countersunk chequerred head
Shank: plain, round
Point: diamond point, round point
Standing: BS EN 10230-1:2000,normal
Specification
| Length | Diameter | |
| Inch | MM | BWG |
| 0.5'' | 12.7 | 20/19/18 |
| 0.75'' | 19 | 19/18/17 |
| 1.0'' | 17/1725.4 | 17/16/15/14 |
| 1.25'' | 31.7 | 16/15/14 |
| 1.5'' | 38 | 15/14/13 |
| 1.75'' | 44.4 | 14/13 |
| 2.0'' | 50.8 | 14/13/12/11/10 |
| 2.5'' | 63.5 | 13/12/11/10 |
| 3.0'' | 76.2 | 12/11/10/9/8 |
| 3.5'' | 88.9 | 11/10/9/8 |
| 4.0'' | 101.6 | 9/8 |
| 4.5'' | 114.3 | 8/7 |
| 5.0'' | 127 | 7/6 |
| 6'.0'' | 152.4 | 6/5 |
| 7.0'' | 177.8 | 5/4 |
Mainly Processes of production
1. wire drawing: make the needed diameter of nails
2. cold upsetting: make the cap and diamond point
3. polished: by this process the polished nail is over.
Packing
100PCS/0.5kg 1kg 2.5kg 5kg 10kg 20kg 25kg 1000kg plastic bag,carton box,wooden box or according to your requirement.
