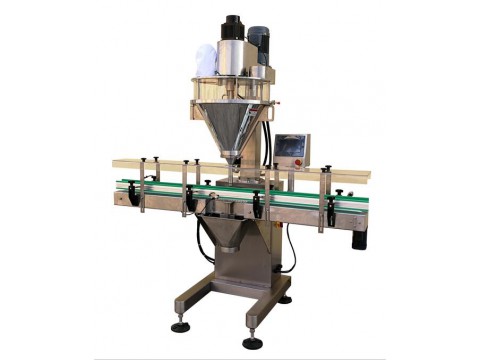

SP-L1W-L
Descriptive abstract
This Machine is a complete, economical solution to your filling production line requirements.can measuring and filling powder and granular. It consists of the Weighing and Filling Head, an independent motorized chain conveyor mounted on a sturdy, stable frame base, and all necessary accessories to reliably move and position containers for filling, dispense the required amount of product, then quickly move the filled containers away to other equipment in your line (e.g., cappers, labelers, etc.).based on the feedback sign given by below weight sensor, this machine do measuring and two-filling , and work,etc.It fits more to the fluidic or low-fluidity materials, like milk powder, albumen powder, pharmaceuticals, condiment, solid drink, white sugar, dextrose, coffee, agriculture pesticide, granular additive, and so on.
Main features
Stainless steel structure;Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
Pneumatic platform equip with load cell to handle two speeds filling as per preset weight. Featured with high speed and accuracy weighing system.
PLC control, touch screen display, easy to operate.
Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.
Save the parameter of different filling weight for different materials.To save 10 sets at most.
Replacing the auger parts,it is suitable for material from super thin powder to granule.
Main Technical Data
| Dosing mode | Dosing by weighing |
| Filling weight | 10 – 5000g |
| Filling Accuracy | 100-1000g, ≤±2g; ≥1000g, ≤±0.1-0.2% |
| Filling Speed | 5 – 10 bottles per min |
| Power Supply | 3P AC208 - 415V 50/60Hz |
| Air Supply | 6 kg/cm2 0.05m3/min |
| Total power | 2.45Kw |
| Total Weight | 400kg |
| Overall Dimensions | 2000×970×2030mm |
| Hopper Volume | 75L |
Deploy List
| No. | Name | Model Specification | PRODUCING AREA, Brand |
| 1 | Stainless steel | SUS304 | China |
| 2 | PLC | FBs-40MAT | Taiwan Fatek |
| 3 | HMI | Schneider | |
| 4 | Servo motor | TSB13102B-3NTA | Taiwan TECO |
| 5 | Servo driver | TSTEP30C | Taiwan TECO |
| 6 | Agitator motor | GV-28 0.4kw,1:30 | Taiwan WANSHSIN |
| 7 | Switch | LW26GS-20 | Wenzhou Cansen |
| 8 | Emergency switch | Schneider | |
| 9 | EMI Filter | ZYH-EB-10A | Beijing ZYH |
| 10 | Contactor | CJX2 1210 | Schneider |
| 11 | Hot relay | NR2-25 | Schneider |
| 12 | Circuit breaker | Schneider | |
| 13 | Relay | MY2NJ 24DC | Schneider |
| 14 | Switching power supply | Changzhou Chenglian | |
| 15 | Loadcell | 10kg | Shanxi Zemic |
| 16 | Photo sensor | BR100-DDT | Korea Autonics |
| 17 | Level sensor | CR30-15DN | Korea Autonics |
| 18 | Conveyor motor | 90YS120GY38 | Xiamen JSCC |
| 19 | Conveyor Gear box | 90GK(F)25RC | Xiamen JSCC |
| 20 | Pneumatic cylinder | TN16×20-S 2 | Taiwan AirTAC |
| 21 | Fiber | RiKO FR-610 | Korea Autonics |
| 22 | Fiber receiver | BF3RX | Korea Autonics |
