Shortening/Margarine/Vegetable Ghee Processing Line

Shortening/Margarine/Vegetable Ghee Processing Line

We are the solution provider in engineering design of process and equipment in the food industry. The supplier came with knowledge and experience from Unilever as an experienced engineer (>30 years) in fats and oils processing. We are the top leading supplier of margarine/shortening production equipment in China. We are one of the very few global companies that offers turnkey margarine/shortening/ghee production line for one-stop shopping with guarantee in equipment and production performance. We have teams of experienced technicians to assist in field installation, testing, commissioning and training for our customers. Our line and equipment are built to meet/or exceed the FDA3A and EHEDG standards. Our goal is to provide you with safe, efficient and reliable food processing line and production equipment. Our company success is built on honesty and innovation in selling low cost equipment manufactured in China and designed with advanced Western knowledge. Our turnkey line and equipment can be found globally, including Russia, Europe, Africa, South America, New Zealand, South Asia, Indonesia and other international markets.

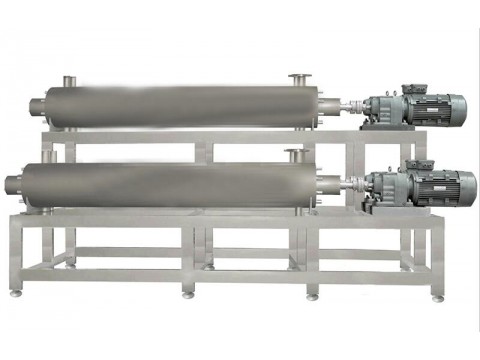

Pin Worker/ C Unit.

The Pin Worker consists of a hot water jacketed cylinder with a row of fixed static pins (optional 3 rows) and a concentric shaft carrying pins in a helical or straight pattern. The rotating shaft pins intermeshes with the static pins to provide the necessary kneading function for softening the shortening. The shaft is driven by a variable frequency geared motor for flexibility. The very high operating pressure mechanical seal is the same as SSHE for standardization.


All wetted surfaces are made of stainless steel (304 or 316L), internal surface polished to food grade application, external finish dry honed with welds grounded. All seal parts, 'O' rings, gaskets and non-drive end bush compatible with product. The unit is hot water jacketed and insulated, with optional individual temperature controlled hot water circulation tank.

Technical data:

1. Product volume of cylinder: std 50 and 100 liters
2. Product Pressure Rating: 70 bar
3. Jacket Pressure Rating : 1.0 bar
4. Approximate Weight 1000 kg
5. Approx Dimensions (LxWxH) 2000 mm L x 425 mm dia
6. Shaft Speed, VFD drive 100 ~ 300 rpm

Model	Length(mm)	Specification
		Volume (L)	Material	Pin rod distance (mm)	Static pin	Dynamic pin	Power & rotating speed of motor	Pressure	Direction
SPC30	700	30	SUS304 or SUS316L	1.5mm	Single row	Screw type	7.5-15kw, 320rpm, speed adjustable by frequency inverter	3Mpa	Horizontal
SPC40	900	40
SPC60	1400	60
SPC80	1600	80
SPK30	700	30		2mm	Three row	Line type
SPK40	1000	40
SPK60	1400	60
SPK80	1600	80
