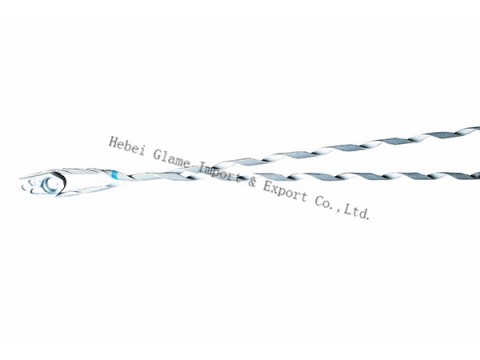

Click image to view original image
Component
Thimble, Armor rods
Characteristic
1. Stress is distributed equally, without stress focus. It can protect ACSR cables very well.
2. Under the condition of not exceeding the intensity of cable's side pressure, it has higher grip power for the cable, and can support higher tensile force.
3. Simple installation, No special tools needed, and one person can finish the whole installation.
Select Chart
| Model no. | LGJ/LGJF GB/T1179-1983 | Conductor Dia | Length(mm) | Weight(kg) | Color code | |
| Cross section Al/Steel(mm) | Min(mm) | Max(mm) | ||||
| NL-16/3 | 16/3 | 5.17 | 5.79 | 444 | 0.1 | Brown |
| NL-25/4 | 25/4 | 6.54 | 7.34 | 546 | 0.1 | Yellow |
| NL-35/6 | 35/6 | 7.35 | 8.26 | 622 | 0.2 | Red |
| NL-50/8 | 50/8 | 9.26 | 10.39 | 685 | 0.2 | Yellow |
| NL-70/10 | 70/10 | 10.40 | 11.68 | 736 | 0.3 | Blue |
| NL-50/30 | 50/30 | |||||
| NL-70/40 | 70/40 | 13.12 | 14.66 | 876 | 0.6 | Red |
| NL-95/15 | 95/15 | |||||
| NL-95/20 | 95/20 | |||||
| NL-120/7 | 120/7 | |||||
| NL-120/20 | 120/20 | 14.67 | 16.59 | 889 | 0.8 | Black |
| NL-95/55 | 95/55 | |||||
| NL-120/25 | 120/25 | |||||
| NL-150/8 | 150/8 | |||||
| NL-150/20 | 150/20 | 16.60 | 18.77 | 1016 | 1.1 | Green |
| NL-150/35 | 150/35 | |||||
| NL-120/70 | 120/70 | |||||
| NL-185/25 | 185/25 | 18.78 | 21.26 | 1155 | 1.7 | Orange |
| NL-210/10 | 210/10 | |||||
| NL-210/35 | 210/35 | |||||
| NL-210/50 | 210/50 | |||||
| NL-240/40 | 240/40 | 21.27 | 24.05 | 1270 | 2.3 | Blue |
| NL-240/55 | 240/55 | |||||
| NL-300/25 | 300/25 | |||||
| NL-300/40 | 300/40 | |||||
