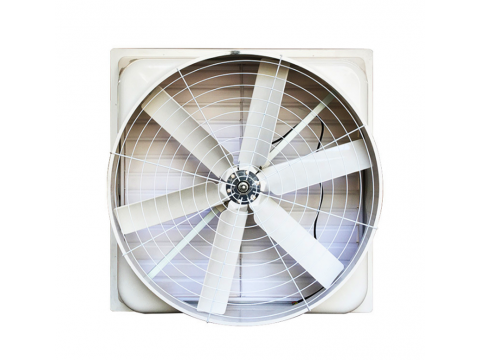

Exhaust Fan for Poultry House
Description
Our poultry farm ventilation Exhaust Fan is Huge air flow, high strength, anti-corrosion
Low noise, high efficiency . It is widely used in agriculture, industry and other closed places for cooling, Ventilation .
| Model | Air Volume | size (L*W*H) | Fan RPM | Motor Power | Weight |
| HS-22 | 22000 m3/H | 0.86*0.86*0.6m | 560 rpm | 0.55kw | 36kg |
| HS-28 | 28000 m3/H | 1.06*1.06*0.6m | 560 rpm | 0.55kw | 42kw |
| HS-42 | 42000 m3/H | 1.26*1.29*0.6m | 560 rpm | 0.75kw | 56kg |
| HS-46 | 46000 m3/H | 1.46*1.46*0.6m | 450 rpm | 0.75kw | 72kg |
Machine Parts
Large fiberglass SMC die-press machine, profassional equipment, high quality production.
Fan blades
Fiberglass fan blade is made by one-time forming and stamping. Lower air resistance and eliminate the resonance produced by the metal combination and reduce the noise.
We can do customized product as your request, black color fiber glass blade, yellow color our frame, or aluminum blades.
Motor steel holder
Motor stander can be steel holder or fiber glass holder. Our new equipment with new design, not only has new out frame shape also new fiber glass holder as well. Keep stable and low noise.
Fan shutters
Fan shutters are made of PVC material, can be open and closed automatic with fan on and off. Shutters are new designed dustproof and waterproof.
Exhaust Fan Features:
Fan Housing - made of glass fiber reinforced plastics pressered by oil bearing mold.it is high strength,corrosion preventive , low maintenance, rust free, easy cleaning, and high performance.
Fan Blades- made of 6pcs thicker glass fiber reinforced plastics pressered by mold.it is high strength,corrosion preventive.
Motor - 12poles , complete copper motor , totally enclosed , IP54, F grade insulation , dustproof,waterproof,automatic thermal ,overload ,loss phase protection, 2 years warranty .
Pneumatic Shutter - With PVC extrusion frame , automatic open and close with the air flow ,
smooth operation and less air drag. Stainless steel corner clips inside of PVC for strong shutter construction.
