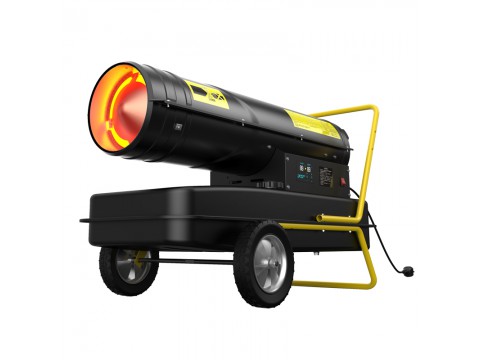

Poultry House Heater
Description
poultry house thermal oil heater products series
Oil/gas heaters(Diesel or kerosene)
1. DH series(Output heat 23KW or 43KW)
The burning heat was blowed out directly. Used in construction site or small industrial workshop, for temporary heating or drying. Can also be used in chicken brooding and pig conservation.
DH25PV have a heat exchanger and a chimney, to exhaust tail gas.
2. Tornado series(Output heat 66KW or 115KW)
This series have a special fan, can get oxygen from outside through vent and pipe. This can make burning more stable.
3. Mirage series(Output heat 36KW or 53KW or 84KW)
This series have Oxygen fan can get oxygen from outside, and efficient heat exchanger, this can exhaust tail gas, making blow hot airs clean.
Our special design is the air outlet have a baffle in no wind area, make outlet air strong, can blow further through the air-discharge pipe.
4. Helios series(Output heat 140KW/145KW/174KW/195KW)
Helios using the isolated independent burner, burn oil or gas. Burning chamber is multipass exchange heat, the highest heat effiency, exhaust tail gas the same time.
Our burner using the Riello(Italy brand) burner, more durable.
Feature of the diesel fuel heater :
1. Robust and tough design
2. Function on diesel oil or kerosene
3. Stainless steel combustion chamber with fan cooling
4. Durable external powder coating
5. With flame sensor
6. If no oil , heater will cut off the power
7. Fixed Oil display
8. Cut-off protection,re-plugged in will not work automatically
9. Low pressure atomization,combustion completely
10. Waterproof class IPX4
11. With P.C.panel to smart setting temperature
12. Easy maintenance
13. Ideal for heating warehouses, factories and workshops
Parameter of the diesel fuel heater:
| Model | DH-20 | DH-40 |
| Heat output capacity(KW) | 23 | 43 |
| kilocalorie/H | 20000 | 37000 |
| Air volume | 400 m³/h | 1050m³/h |
| Power | 100W | 250W |
| Average fuel consumption | 1.8L/H | 3L/H |
| Fuel tank capacity | 21L | 42L |
| Source power | 220V-50Hz | 220V-50Hz |
| Weight | 26kg | 37kg |
| Wide | 360mm | 440mm |
| Length | 810mm | 930mm |
| Height | 380mm | 570mm |
