Equipment running track:

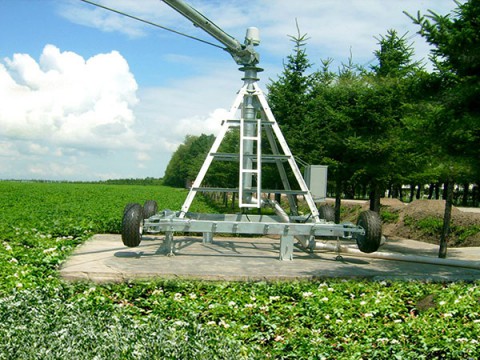

Circular(D) drag (E).One model of the circular sprinkler,the difference between the fixed sprinkling irrigation machines is that the center point is wheel-mounted.Meanwhile the wheels of the tower can be moved to the dragging position.Attached to a tractor,it can be dragged to the next land for irrigation operation.It is fit the low irrigation amount requirements.
Equipment length:
The parameters of spans and cantilevers are the same as the center pivot towable.the upper limit length of the equipment is two wheels-200m;three wheels-410m;four wheels-410m.
Electricity and water supply:
Electricity supply model:buried cable and generator set.Water supply mode:buried pipe and water reservoir.
Equipment types:
Two wheels,three wheels(B),four wheels(C).
Span parameters:
Pipe diameter:141/168/203mm; sprinkler spacing:0.76/1.52/2.23m; through height:3.25/3.4/3.9; flange thickness:12mm.
Main features:
Attached to a tractor,it can bragged to the next land for irrigation operation.It can increase irrigation area by single machine.Buy less equipment can irrigation more land.
