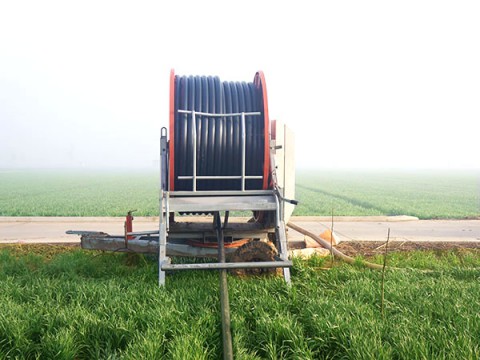

Introduction: Hose reel irrigation has the water hose,hose reel and long range nozzle .The nozzle can move along the irrigation route.The irrigation is self-propelled,automatic stoppage and easy management and maneuverable.
Equipment length:Reel pipe is 100-750m.
Electricity and water supply:
Electricity supply mode: water drive and electric cable.
Water supply mode: pipe.
Equipment types: Sport series,comfortable series,silver series,essence series and super star series.
Main features:
Easy traction and low cost.Our company adopts advanced modern production technology.The hose reel irrigation adopts choked flow turbine.It can ensure the superior performance of the automatic irrigator and the cost is maximumly reduced.Not only the steel frame structure of whole machine,but also the smallest parts are used galvanized processing to ensure the longer service life.
| Diameter(mm) | Pipe Length(mt) |
| 65 | 220 |
| 65 | 250 |
| 65 | 300 |
| 65 | 340 |
| 75 | 250 |
| 75 | 270 |
| 75 | 300 |
| 75 | 350 |
| 85 | 200 |
| 85 | 300 |
| 90 | 230 |
| 90 | 250 |
| 90 | 280 |
| 90 | 300 |
| 90 | 330 |
| 90 | 350 |
| Model | JP-65TX | JP-75TX | JP-85TX | JP-90TX |
| Dimensions (length × width × height)(mm) | 4730×1900×2320 | 5300×2025×2660 | 5350×2025×3060 | 6470×2150×3180 |
| Sprinkler flow rate（m³/h） | 13～38 | 13～60 | 17～65 | 17～72 |
| Irrigation machine inlet pressure（MPa） | 0.50～1.00 | 0.50～1.00 | 0.50～1.00 | 0.50～1.00 |
| Nozzle Model Name | 50PYC Vertical Swing Gun | 50PYC Vertical Swing Gun | 50PYC Vertical Swing Gun | 50PYC Vertical Swing Gun |
| Nozzle working pressure（MPa） | 0.25～0.50 | 0.25～0.50 | 0.25～0.50 | 0.3～0.6 |
| Number of nozzles（num） | 1 | 1 | 1 | 1 |
| Water pipe diameter（mm） | Φ65 | Φ75 | Φ85 | Φ90 |
| Number of jobs （kg） | 2050 | 2540 | 3020 | 3770 |
| Structural quality（kg） | 1350 | 1600 | 1800 | 2250 |
| PE pipe length（m） | 300 | 300 | 300 | 330 |
| Nozzle flow（m³/h） | 13～38 | 13～60 | 17～65 | 17～72 |
| Nozzle range（m） | 28-41 | 30-44 | 30-49 | 38-51 |
| Nozzle wheel distance（mm） | 1500～2800 | 1500～2800 | 1500～2800 | 1500～2800 |
| Main wheelbase（mm） | 1500 | 1500～1800 | 1500～1800 | 1500～1800 |
| Supporting power (kw) | 5.5 | 5.5 | 7.5 | 7.5 |
| Sprinkler strip width (m) | 40～55 | 40～60 | 50～65 | 50～75 |
