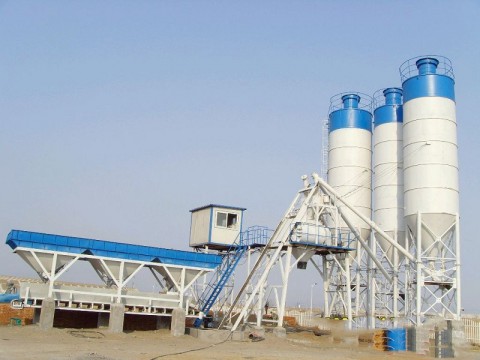

HZS35 Small Concrete Mixing Plant
Application:
HZS35 concrete small mixing plant belongs to small concrete mixing equipment. The mixing station adopts JS750 double-shaft forced mixing main machine, special four-fold sealing and electric oil pump technology, good mixing quality and high mixing efficiency, which is the ideal choice for customers. .
Features:
1. Quadruple sealing technology
Besides the common sealing process, there are two steel bearing protection rings between side mixing arm and shaft head, which can prevent coarse sand from entering.
2. Electric oil pump technology
Independent oil supply from four pump cores to four shaft heads, no diversion valve, reduce maintenance and maintenance costs;
3. imported reducer
Reducer and oil seal system are designed and produced by well-known globle manufacturers, long service life, low noise, no oil leakage;
4. Gear oil filtration/cooling system
Optional with the fourth generation of gear oil filtration and cooling system, excellent technology and durability.
Process characteristics:
Compared with similar products on the market, HZS35 concrete mixing plant has advantages:
1. Quadruple sealing technology
In addition to the common sealing process, there are two steel bearing protection rings between the side mixing arm and the shaft head to prevent coarse sand from entering;
2. Electric oil pump technology
The four pump cores supply oil to the four shaft heads without the need for a diverter valve, reducing maintenance and maintenance costs;
3. import reducer
The reducer and oil seal system are designed and produced by well-known foreign manufacturers, with longer service life, low noise and no oil leakage;
4. Gear oil filtration / cooling system
Optional four-generation gear oil filtration and cooling system, military-grade technology, high quality and durability.
Product parameters:
HZS35 concrete mixing plant
|
HZS25 |
HZS35 |
HZS50 |
||
|
Rated productivity |
25m³/h |
35m³/h |
50m³/h |
|
|
Mixing host |
Model |
JS500 |
JS750 |
JS1000 |
|
|
Host power |
18.5KW |
30KW |
2x18.5KW |
|
|
Productivity |
25m³/h |
35m³/h |
50m³/h |
|
Batching unit |
Model |
PLD800 |
PLD1200 |
PLD1600 |
|
Power |
6.6KW |
11KW |
12KW |
|
|
Maximum weighing value |
Aggregate |
1200kg |
2000kg |
3000kg |
|
Cement |
300kg |
400kg |
600kg |
|
|
Water |
150kg |
250kg |
250kg |
|
|
Admixture |
40kg |
40kg |
40kg |
|
|
Measurement accuracy |
Aggregate |
±2% |
||
|
Powder |
±1% |
|||
|
Water |
±1% |
|||
|
Admixture |
±1% |
|||
Our service:
Pre-sale service
1.Assiste customers to select the suitable type of mixer
2.Designe and manufacture products according to the special requirements of customers.
3.Engineers and technicians go to the place of users to design the workshop, the best process and project for the users.
In- sale service
1. Inspection and acceptance of mixer equipment.
2. Assist customers to draw up construction plans.
After-sales service
1. Organize, coordinate and implement after-sales service for users who order equipment.
2. Organize relevant departments of the company to collect customer feedback, formulate implementation plans in time and solve practical problems of customers.
3. More than 40 professional technical after-sales service personnel stationed abroad for long-term customers tracking service.
4. Provide spares parts and other accessories for users in time.
