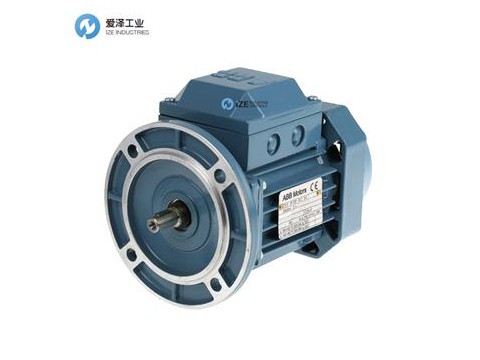

ABB Motor M2QA Series M2QA71M2A

Click image to view original image
Brand: ABB
ABB: M2QA Series M2QA71M2A
Price: Negotiable
Min.Order: 1 box
Supply 1000 box
Delivery: Shipment within 3 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2019-02-14 15:07
Hits: 50133
Enquiry
Company Detail


Details

ABB provide motors and generators,services and expertise to save energy and improve customers' processes over the total lifecycle of products and beyond.


ABB Motor Main Series

M2QA Series Standard Three-phase Asynchronous Motor

QABP Series Three-phase Asynchronous Motor with Frequency Conversion and Speed Regulation

M2QA/M2QA-H Series Marine Three-phase Asynchronous Motor

M2JA Series Flameproof Three-phase Asynchronous Motor for Dangerous Environment

M2SV Series Flue Three-phase Asynchronous Motor

M2QA/QAD Series Pole-changing Multi-speed Three-phase Asynchronous Motor

SL Series Train Series Three-phase Asynchronous Motor for Air Conditioning

M2GP Flameproof Three-phase Asynchronous Motor

MQAEJ/QAEJ electromagnetic braking three-phase asynchronous motor

M2QA-W outdoor three-phase asynchronous motor

QA Series Common Three-phase Asynchronous Motor

M3BP Low Voltage High Performance Process Motor


M2QA Series IEC Low-voltage Three-phase Induction Motors

As the standard series of ABB M2000 family, the M2QA series IEC low-voltage three-phase induction motors are in conformity with efficiency class 2 of CEMEP-EU. High efficiency assures energy savings, and high reliability reduces the faulty time and the maintenance costs. The motors are designed and manufactured according to European technology, including features such as low noise level and long life cycle. M2QA motors are suitable for various environments and operate in a wide range of different industrial areas.


Outstanding Features of M2QA Motors

·High efficiency and energy saving in combination with high reliability reduces the operation costs.

·Advanced production technology assures accurate products.

·Motors are equipped with imported bearings.

·Flexible design with choice of additional accessories fulfills most customers’ requirements.


Product Features

1) These motors are built to comply with current International Standards.

·International Electro-technical Commission - IEC60034and IEC60072

·British Standard - BS4999

·Australian Standard - AS1359 - 2

·German Standard - DIN42673

2) These motors are built to comply with current National Standards.

·GB755

·GB10069

·Q/JBQS36


Standards

High efficiency

1.1 -90 kW, 2P and 4P, in S1 duty, M2QA motors are among the class 2 of CEMEPEU standard, saving energy and operating costs.

Bearings with high load capacity

All motors are provided with deep-groove ball bearings, the lifetime is extended. Cast iron motors in sizes 71 - 225 are greased for life, and those in sizes 250 – 355 have a regreasing device as a standard.

Voltage ranges of extra versatility

A wide range of voltages can be up to max. 690 V, for 50 Hz and 60 Hz is available.

Low noise level

The M2QA range has been designed to minimize motors noise levels by means of improving magnetic and electrical design, ventilating condition, structural assembling size and technology.

Reliable windings

To ensure long lifetime, the windings are made of the latest available materials in class F protection and temperature rise limited to class B (80K) in standard motors.

Strong corrosion protection

The motors are made to withstand aggressive environment as standard and they are designed for long lifetime. For motors with regreasable elements, they have strong and effective protection against corrosion.

Additional winding protection

PTC thermistors, thermal switches and anticondensation on request


Mechanical Design

Totally enclosed fan cooled IP55

Heavy duty design, manufactured from extra corrosion resistant cast iron materials to be used in all kind of environment. The motor is mechanically very strong and robust and as standard designed for additional energy saving through frequency converter drives.

Flexible cable entry direction

Terminal boxes are mounted on the top of the motors, right or left. Terminal boxes of motor size 71 - 132 can rotate 4×90°, and those of 160 - 355 can rotate2×180°. All are easy to refit.

Powerful refit available

The motors satisfy the requirements of a wide range of environments and applications, such as improving protection, insulation level, regreasing facilities, dustproof, sealing rings, protective roof are available.


IZE_industries specializes in sales of ABB motors, including ABB Low-voltage motors, ABB synchronous motors, ABB generators and more:

ABB MOTOR M2QA71M2A

ABB MOTOR M2QA71M2B

ABB MOTOR M2QA80M2A

ABB MOTOR M2QA80M2B

ABB MOTOR M2QA90S2A

ABB MOTOR M2QA90L2A

ABB MOTOR M2QA100L2A

ABB MOTOR M2QA112M2A

ABB MOTOR M2QA132S2A

ABB MOTOR M2QA132S2B

ABB MOTOR M2QA160M2A

ABB MOTOR M2QA160M2B

ABB MOTOR M2QA160L2A

ABB MOTOR M2QA180M2A

ABB MOTOR M2QA200L2A

ABB MOTOR M2QA200L2B

ABB MOTOR M2QA225M2A

ABB MOTOR M2QA250M2A

ABB MOTOR M2QA280S2A

ABB MOTOR M2QA280M2A

ABB MOTOR M2QA315S2A

ABB MOTOR M2QA315M2A

ABB MOTOR M2QA315L2A

ABB MOTOR M2QA315L2B

ABB MOTOR M2QA355M2A

ABB MOTOR M2QA355L2A

ABB MOTOR M2QA71M4A

ABB MOTOR M2QA71M4B

ABB MOTOR M2QA80M4A

ABB MOTOR M2QA80M4B

ABB MOTOR M2QA90S4A

ABB MOTOR M2QA90L4A

ABB MOTOR M2QA100L4A

ABB MOTOR M2QA100L4B

ABB MOTOR M2QA112M4A

ABB MOTOR M2QA132S4A

ABB MOTOR M2QA132M4A

ABB MOTOR M2QA160M4A

ABB MOTOR M2QA160L4A

ABB MOTOR M2QA180M4A

ABB MOTOR M2QA180L4A

ABB MOTOR M2QA200L4A

ABB MOTOR M2QA225S4A

ABB MOTOR M2QA225M4A

ABB MOTOR M2QA250M4A

ABB MOTOR M2QA280S4A

ABB MOTOR M2QA280M4A

ABB MOTOR M2QA315S4A

ABB MOTOR M2QA315M4A

ABB MOTOR M2QA315L4A

ABB MOTOR M2QA315L4B

ABB MOTOR M2QA355M4A

ABB MOTOR M2QA355L4A


Who we are

IZE-industries was established in 2010.With its many years of professional experience, providing advanced manufacturing industries technology and equipment. Including advanced electrical automation, machinery and transmission, fluid control, instrumentation, tools and other products. As a partner in electrical, hydraulic and pneumatic solutions, we also provide our customers with consulting solutions, market knowledge, and value-added services.


What we offer

Engineering and Consulting

Full-service controls engineering and consulting solutions for industrial

manufacturing equipment, including:

Electrical design

PLC programming and repair

Process optimization

Down-time consultation

spare parts from the areas, including:

Hydraulic, Pneumatic, Industrial, Automation technology.

Please contact us for complete stock list or special discount.


If you have any question for ABB MOTOR, please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.


For more detailed information on the ABB MOTOR or to purchase related products, please contact IZE Industries.
