Click image to view original image
Description:
The temperature of the profile will lower down to 450ºC when it is transferred about 10 meters to the run-out table,and at this stage the best material is Kevlar.High density is the key factor for good abrasion resistance ,morover,resin treatment is available on request for better abrasion resistance and longer service life.

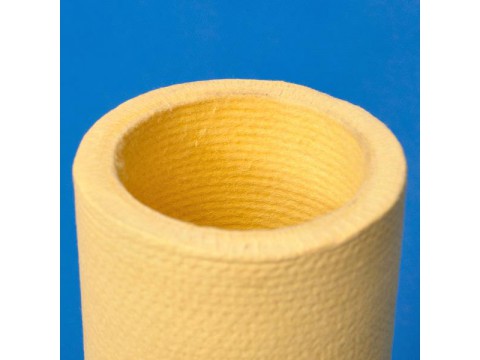

High temp.resistance felt roller. Suitable for use after fly cut and run out tab1e.(High Temp Zone).Kevlar rollers are capable of withstanding operating temperatures of up to 480˚ C /. High strength and superior abrasion resistance make this a preferred product for many extrusion conveying tables.
HUATAO seamless felt roller series is specially developed for the customers who have a high requirment for surface.
Advantages of HUATAO roller:It resists to rasing,unevenness,scaling,aluminum pollution and other defects.With smooth surface,the product adopts advanced new technology and is more surable and cost-effective.It is especially suitable for the production of high-quality aluminum products with electrophoretic or polished surface.
Specification:
Material：100% Kevlar，Kevlar+Carbon Fiber
Color：Yellow,Green
Temperature Resistance:480 degree
Available Size：(inside diameter,mm) Φ18 Φ23,25 Φ49,50,51 Φ60,62,63 Φ76,77 Φ80,81,82 Φ90,95 Φ100,101,102 Φ114,115 Φ120
Thickness（mm）：6---12
Application
1.Applied to aluminum profile extrusion cooling table walking beams.the max temperature resistance 500℃
2.This kind of Kevlar felt cover is main used for the felt type cooling table(First and Second stage) in the Aluminum Extrusion Industry
3.Commonly used for the Initial Table and the forepart of Run-out Table of the aluminium extrusion lines.
Advantage
1. Easy to install, everyone can operate
2. Small weight, convenient storage
3. The blanket has no joint as a whole and there is no break zone
4. The surface is soft and flat, will not scratch the profile
5. Temperature resistance 500°C
