Description

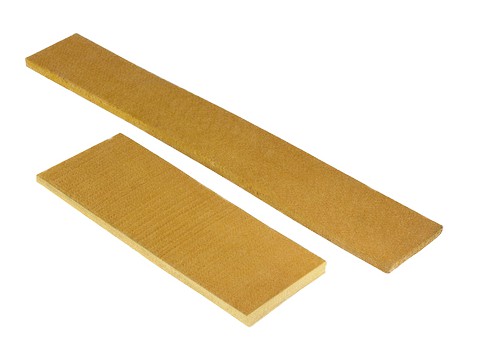

PBO felt pad also known as Felt strip, Industrial Felt Belt etc. It is made of high temperature fiber PBO + Kevlar fiber + high temperature fabric,The color is brown + yellow,up to 600c degrees high temperature,for the extruder discharge port,that could improve the scratch and black marks caused by graphite,especially suitable for the production of aluminum products with high requirements,if it is Heavy-duty extruders, PBO blocks can also be used as a movable beam for their first-stage cooling beds.
Specification
Color:Brown
Technology:Needled punched
Material:PBO+Kevlar
Material Feature:Heat Resistant
Thickness:6mm,8mm,10mm
Width:20-2000mm
Length:540-13500mm
Continual temperature:550℃
Peaking temperature:600℃
Usage:aluminum extrusion lines
Application
Applied to extrusion machine’s run out table to replace the graphite material
Aluminium extrusion press exit, especially for thos demanding profiles
As the substitute for graphite slats, 600℃ PBO Pad is mainly used on the very beginning of the extruders – press spout, avoiding scratches and dark marks caused by graphite. It is especially suitable for those demanding extruded profiles.
Advantage
1.Heat resistant up to 600℃
2.No elongation under high tension and heavy load
3.No seam, splice or joints: no breaks due to weak zone,High density structure
4.Smooth and even belt surface: scratch-free extrusions
5.Excellent belt tracking on the cooling table
6.Low heat conductivity and high density with good wear resistance and impact resistance property under heavy conditions
