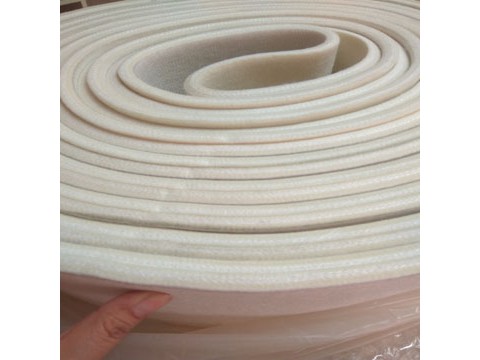

Thermal transfer printing equipment Blanket, also called endless seamless blanket, endless loop blanket tape, is made of 100% nomex fiber, the maximum temperature of 280 degrees Celsius, due to the special process, so there have no joints and it is the real seamless , the surface is more smooth, and has acid, alkali, heat, cold, abrasion, oil, burning resistance, high temperature, flame retardant, heat, non-slip, moisture, anti-static, anti-corrosion and other features.
Specification:
Materials: Nomex fiber
Density: 2800~3850G/M2
Width: 600~4000mm
Perimeter: 2200mm, 2600mm, 3400mm, 5000mm, etc
Thickness: 7~8mm,10~11mm
Temperature: 210~280º C
Advantage
1. Selection Of Brand Raw Material,Common Specifications Have Temperature 160-180℃ And 220-280℃.
2. The Felt Belt Contains Heat Shrinkable Fiber Material Inside,The Felt Will Automatically Shrink After Heating,Wrapped Tightly.
3. The Belt Surface Formation,Uniform Density,Good Resistance,Long Work Life.
Application
1. Selection Of Brand Raw Material,Common Specifications Have Temperature 160-180℃ And 220-280℃.
2. The Felt Belt Contains Heat Shrinkable Fiber Material Inside,The Felt Will Automatically Shrink After Heating,Wrapped Tightly.
3. The Belt Surface Formation,Uniform Density,Good Resistance,Long Work Life.
Direction of our felt belt
1. The blanket must be install as the direction of the arrow, fixing both sides of the perimeter
to see if the perimeter is the same.
2. Adjust the machine pressure within 2kg. heat up to 150 ℃, idle for 2 hours; heat up to
170℃, idle for 2 hours; heat up to 190℃, idle 3 hours( important); heat up to 200℃,
idle for 2 hours.
3. Then the belt will suitable for your machine, you can adjust the machine pressure in 3--5kg
according to your needed and start to printing.
