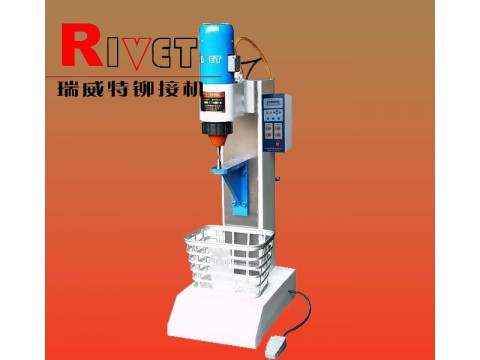

JM9-Cantilelver riveting machine
Characteristics:
■Workbench by cantilever
■Power head fixed or movable as optional
■Suitable the special requirement of throat depth
■Hydraulic or pneumatic as optional
■Pressure display and adjustable
■Rotary part protected
■Can obligate the mouth for fixture
■Cantilever bench fixed
■Display both riveting time and riveting pieces
■Manual and automatic functions
■Smooth and clean after processed
■Stable withou shaking during processing
■Customize variety parameter available
JM9-Cantilever
Cantilever riveting machine applied of radial riveting machine power head, riveting process are stable and smoothly of surface after processed. It's has plenty of adjustment function such stroke, riveting pressure, stroke speed,etc. This machine is applicable complicated workpiece such as cylindraceous, frame shape, round parts etc, which are beyond common riveting machine processed.
Specification:
▲Max riveting diameter Ф 9mm ( solid steel rivet )
▲Max riveting pressure 14Kn
▲Stroke Length Range 30mm
▲Working space Customized
▲Throat depth 125mm
▲Riveting tool length 50mm
▲Eccentric angle 4°
▲Motive force Hydraulic
▲Area of the table surface Narrow support
▲Power 0.92Kw
▲Physical size 700mm×500mm×1417mm
▲Net weight 250Kg
