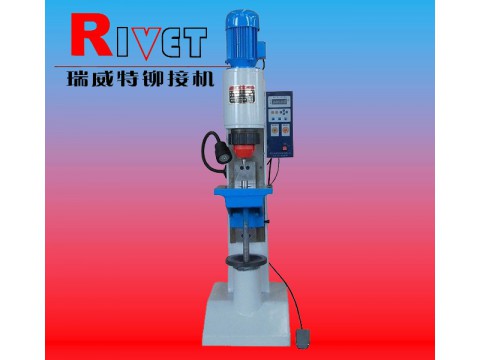

JM9Q (Pneumatic riveting machine)
Characteristics:
■Medium sized vertical style
■Max. processing Dia.Φ9mm
■Pneumatic driven
■Pressure by stepless regulation
■Rotary part protected
■Double-hand buttons or foot pedal
■Set process time as will
■Automatic and manual functions
JM9Q
Scope of application: instrumentation, hardware, electronic products, automobile parts etc
Customized available.
JM9Q is a medium sized radial riveting machine with pneumatic force,vertical style, machining process is stable and perfect result due to applied advanced orbital technology, T-slot fixing the clamping apparatus available, positioning hole is coaxial with spindle to insure the riveting accuracy. Pneumatic system equipped with two way throttle valves to control stroke speed and return speed effectively. Power head fixed and bench adjustment up and down to meet different workpiece's body and shape. Electricity control system equipped with counter and time relay to conveniency operation.
Specification:
▲Max riveting diameter Ф 9mm ( solid steel rivet )
▲Max riveting pressure 14Kn
▲Stroke 30mm
▲Available working space 245mm
▲Throat depth 160mm
▲Riveting tool length 50mm
▲Eccentric angle 4°
▲Motive force Pneumatic
▲Workbench dimensions 260mm×200mm
▲Power 0.55Kw
▲Physical size 700mm×500mm×1570mm
▲Net weight 300Kg
