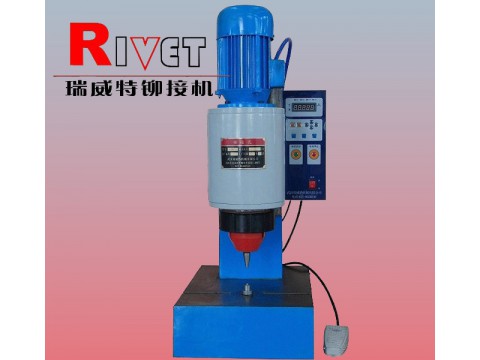

JM12TQ (Pneumatic radial riveting machine)
Characteristics:
■Desktop with pneumatic driven
■Radial structure
■Power head adjustable
■Suitable to setting on production line
■Max. riveting diameter Φ12mm
■Stroke speed adjustable
■Pneumatic with stepless regulation
■Customzied available
JM12TQ
Scope of application: The instrument appearance, daily hardware, electrical equipment, medical equipment, automobile parts etc.
JM12TQ is a kind of smaller desktop pneumatic riveting machine with radial structure. The machine's power head adjustment up and down to meet variety of workpiece's body and shape. The pneumatic system equipped with aerosol lubricating,double way regulation to control piston stroke speed effectively. Electric control system equipped with counter and time relay to easy and simple operations. T-slot on bench to fixing clamping apparatus available, positioning hole is coaxial with spindle to insure riveting process accuracy at ±0.02mm.
Specification:
▲Max. riveting diameter Ф 12mm ( solid steel rivet )
▲Max riveting pressure 20Kn
▲Stroke Length Range 30mm
▲Available working space 170mm
▲Throat depth 160mm
▲Riveting tool length 50mm
▲Angle of inclination 4°
▲Motive force Pneumatic
▲Workbench dimensions 360mm×290mm
▲Power 0.75Kw
▲Physical size 400mm×500mm×980mm
▲Net weight 280Kg
