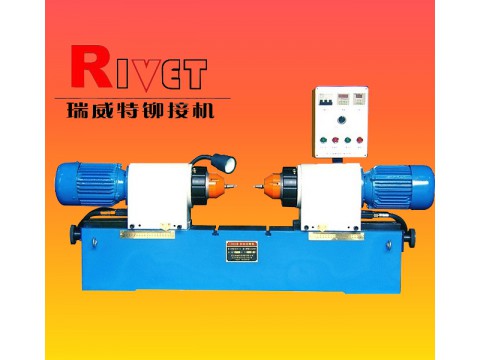

JM16D (Double head riveting machine)
Characteristics:
■Horizontal style with double head
■Max riveting diameter Ф16mm
■Radial structure
■Double power head adjustable
■Bothhand engage button or foot pedal as optional
■Protection mask covered rotary parts
■Stroke speed adjustable
■Automatic and manual functions
■Setting riveting machine as will
JM16D
Scope of applications : The instrument appearance , daily hardware ,metals and electrical equipment etc.
Customized available
JM16D is hydraulic double head riveting machine, the machine assembled by double radial riveting machine's power head and it special for processing double side of rivet or metal pin. The stroke speed and return speed can be adjusted by regulating valve effectively. positioning hole on bench with T-slot are available for holding the workpiece .Multi-adjustment facilities of machine are more convenience of operation.
Specification:
▲Max riveting diameter Ф 16mm ( solid steel rivet )
▲Max riveting pressure 34Kn
▲Stroke Length Range 30mmx2
▲Distance between the the tools 380mm
▲Throat depth 155mm
▲Riveting tool length 62mm
▲Eccentric angle 4°
▲Motive force Hydraulic
▲Oil-tank volume 80 Liters
▲Pressure oil brand 46# ISO
▲Power 4.4Kw
▲Physical size 300mm×400mm×1400mm
▲Net weight 450Kg
