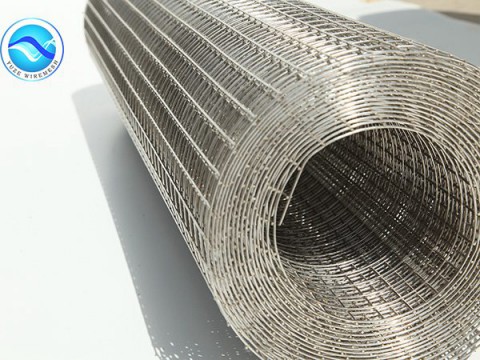

Welded Stainless Steel Wire Mesh
Characteristic: excellent corrosion -resisting, oxidation resisting and anti-alkali Mesh hole is uniformity, and the welding point is firm and smooth.
Diameter: 0.5mm-2mm
Standard roll Size: width: 0.5m to 1.8m, Length: 30m;
Application: Car grilles, Food preparation equipment, Medical implants, Electronics equipment Industry.
Packing: in waterproof paper in rolls. Custom packing available at request.
| Welded Stainless Steel Wire Mesh | ||
| Opening | Wire Diameter | |
| In inch | In metric unit(mm) | |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22,23,24 |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19,20,21,22 |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16,17,18,19,20,21,22,23 |
| 5/8" x 5/8" | 16mm x 16mm | 18,19,20,21, |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16,17,18,19,20,21 |
| 1" x 1/2" | 25.4mm x 12.7mm | 16,17,18,19,20,21 |
| 1-1/2" x 1-1/2" | 38mm x 38mm | 14,15,16,17,18,19 |
| 1" x 2" | 25.4mm x 50.8mm | 14,15,16 |
| 2" x 2" | 50.8mm x 50.8mm | 12,13,14,15,16 |
