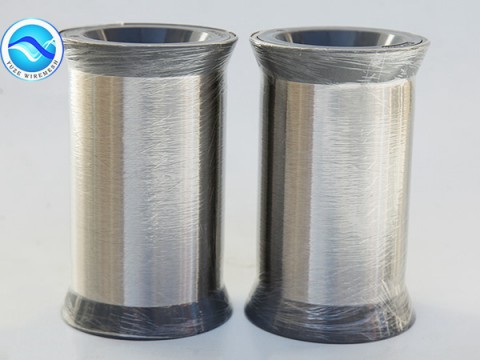

Stainless Steel Hydrogen Annealing Wire(Mesh Weaving)
Features:
Stainless steel wire has a good ductility, high tensile strength and last long in use,high flexibility,abrasion resistance and corrosion resistance ,uniform diameter, smooth surface,bright color,ect.
Parameters:
Wire diameter: φ0.10-φ4.00 mm
Material grade: 304, 304L, 316, 316L,201, 202, 301, 302, etc.
Standard: ASTM, GB,DIN,JIS
Tensile strength: 600N/mm2-800N/mm2
Applications: 70% of our Yuze Stainless Steel hydrogen annealing wire are mostly applied in mesh weaving .
Packing:
1.In spool,with Stretch film put in carton,then in pallet / wooden case;
2.In coils,water-proof paper ,then in pallet/wooden case
Soft stainless steel wire Diameter Tolerance & Oval Tolerance:
| Wire Dia.(mm) | Wire Dia.Tolerance(mm) | Oval.Tolerance |
| 0.030-0.050 | ±0.003 | ≤0.003 |
| 0.050-0.080 | ±0.004 | ≤0.004 |
| 0.080-0.10 | ±0.005 | ≤0.005 |
| 0.10-0.16 | ±0.007 | ≤0.007 |
| 0.16-0.28 | ±0.010 | ≤0.010 |
| 0.28-0.50 | ±0.013 | ≤0.013 |
| 0.50-0.90 | ±0.015 | ≤0.015 |
| 0.90-1.60 | ±0.02 | ≤0.02 |
| 1.60-2.80 | ±0.03 | ≤0.03 |
| 2.80-5.00 | ±0.04 | ≤0.04 |
| 5.00-9.00 | ±0.05 | ≤0.05 |
| 9.00-12.00 | ±0.06 | ≤0.06 |
| 12.00-14.00 | ±0.07 | ≤0.07 |
