Machine description

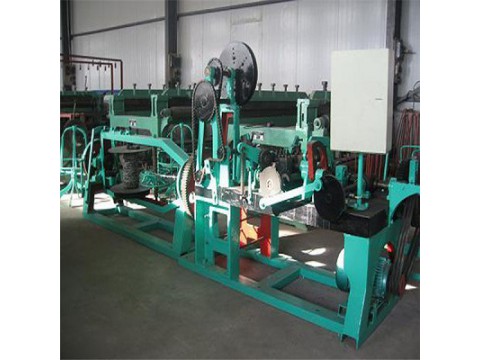

1. Cs-A traditional twisted barbed wire netting machine is of horizontal design,consisting of two parts,assemble together at the middle.It is safe and reliable in operation,capable of turning out high quality products with consistency.
2. Barbed wire is widely used for military,national border,animal breeding,highway,railway,etc.
Machine technical parameters
|
Name |
CS-A barbed wire making machine |
|
Motor |
3KW |
|
Strand wire diameter |
2.2-2.8mm |
|
Barbed wire diameter |
1.8-2.2mm |
|
Material |
Galvanized Wire; PVC Coated Wire; |
|
Barb pitch spacing |
76mm（3”） 102mm（4”）or as requirement |
|
Twist |
4 |
|
Machine life |
Over 10 years |
|
Overall Dimension |
1900mmx1300mmx980mm |
|
Wire collection part size |
1800mmx750mmx750mm |
|
Rated output |
70kg/h |
|
Rotating Speed of Drive shaft |
432r/min |
|
Weight |
1500kg |
Advantage
1. Input wire straightening and easy to cut
2. Counter to calculate the length and auto stop according to settings
3. High efficiency，low machine malfunction
4. Save energy and space，low noise，and 24 hours continue working
5. Barb spacing can be adjusted by
6. Free spare accessory parts
7. Emergency stop button for safety
8. Inching button can start and stop the machine any time，more precise
