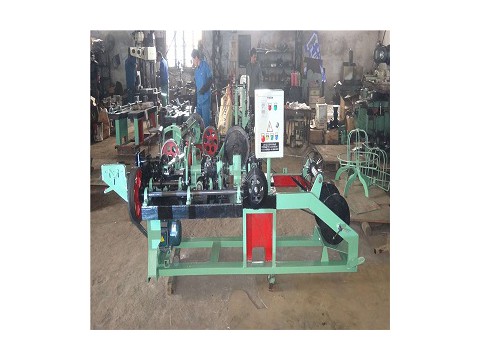

Machine description
1. CS-C Barbed wire machine named positive and negative twisted barbed wire machine,straight and reverse twisted barbed wire machine.It can produce cs-c type double twisted barbed wire
2. Barbed wire is widely used for national border,military,animal breeding,agriculture and so on.
Machine technical parameters
|
Name |
CS-C barbed wire making machine |
|
Motor |
2.2KW |
|
Strand wire diameter |
2.2-2.8mm |
|
Barbed wire diameter |
1.8-2.2mm |
|
Material |
Galvanized Wire; PVC Coated Wire; |
|
Barb pitch spacing |
76mm（3”） 102mm（4”）or as requirement |
|
Twist |
4 |
|
Machine life |
Over 10 years |
|
Overall Dimension |
1900mmx1300mmx980mm |
|
Rated output |
40kg/h |
|
Rotating Speed of Drive shaft |
432r/min |
|
Weight |
1200kg |
Advantage
1. Input wire straightening and easy to cut
2. Counter to calculate the length and auto stop according to settings
3. High efficiency，low machine malfunction
4. Save energy and space，low noise，and 24 hours continue working
5. Barb spacing can be adjusted by
6. Free spare accessory parts
7. Emergency stop button for safety
8. Inching button can start and stop the machine any time，more precise
