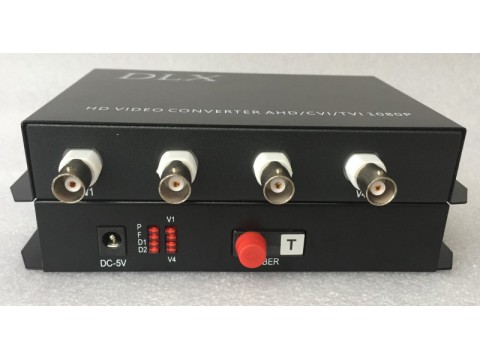

1080P HD-AHD/CVI/TVI/Analog 4 in one Video Audio Data Fiber optical Transmitter and Receiver

  DLX-HDVOP series of products adopts ASIC and advanced digital video, high-speed TDM and Gigabit CWDM technology to provide uncompressed high quality transmission systems for 1-16channels 1280H/25f,1280H/30f,1280H/50f,1280H/60f,1920H/25f,1920H/30f etc format HD-AHD/CVI/TVI/Analog video and up to 32 channels of bi-directional data and audio signals over one single mode or multimode optic fiber. Support transmission of broadcast grade 24bit CD HI-FI audio and high-speed data. Support auto-adapt to 1280×720 and 1920×1080 resolution(only 1920H type). Compared with the same kind of analog transmission systems that employ accidental amplitude or frequency modulation, DLX-HDVOP products provide better transmission in quality. Support network of tree structure, star structure, ring structure and topology etc. DLX-HDVOP  adopts Modularized design, support function expanded.

APPLICATIONS

● High Way & Toll Station Surveillance

● Subway PS System

● Visual command of military bases

● Visual Intelligent Outdoor Surveillance System

● Telemedicine systems

● Digital video display

● Surveillance and cable TV system

● Intelligent traffic monitoring system

● High Quality Video Conference

● Live Broadcast and TV program transmission

● Long-distance multimedia teaching

● Industrial Closed Circuit Television Surveillance

FEATURES

● Support 1280×720/960,1920×1080 resolution, analog and 25f/30f/50f/60f 4kinds frame rate

● Full digital uncompressed, Non-destructive and real-time high quality HD video transmission

● Advanced Audio, AHD/CVI/TVI/Analog, Data adaptive technique

● Standalone,19inch 2.5U type and 4.5U rack mounted type optional, up to 21pieces CVI fiber converters be installed in 19inch chassis

● Modularized and industrialized design ensuring reliability and flexibility

● Fiber connector is SC/FC/ST optional

● Industry grade components , ESD protection design, Aluminum-alloy case

● Unique Power Polarity protection, Power wrong connection protection, Auto-recover after fault been remove

● Support 1+1 dual power supply to ensure safe and reliable power supply

● No EMI, no RFI etc.

● Indicators for Power Supply, Video, Optic-link and Data-loop

● Free from In-field Adjustment

● Flexible and Easy Mount

● Protection against lightening strike and surge

● Transmission distance: 2KM(multi-mode); 20km,40km,60km,80KM,100KM optional(Single-mode)

SPECIFICATIONS

Optical index

Wavelength	850/1310nm(MM),1260nm~1360nm/1470nm~1610nm(SM)
Optical power	0 dBm ~ -3dBm/-5dBm ~ -10dBm
Number of fiber	One or Four cores optional
Receiving Sensitivity	≤-28dBm
Connector	FC(SC,ST optional)
Bandwidth of single wavelength	1.25G/2.5G
Distance	0-100km

HD-AHD/CVI/TVI

Channel	1~16
Input level	>500mVp-p
Output level	1Vp-p
Input impedance	75ohm
Input Bandwidth	60 MHz
Quantization	10 bits
Reflection loss	>15dB
Up/down time	<0.8ns
Max. shake	<0.2 UI
Connector	BNC

Data interface

Interface Type	RS-232/485/422, Manchester, Biphase
Operation Mode	Full-duplex/Half-duplex
Data Rate	DC-115.2Kbps/DC-2Mbps
BER	<10E-12
Connector	RJ45/ Terminal Plug with screw clamps/DB-9
