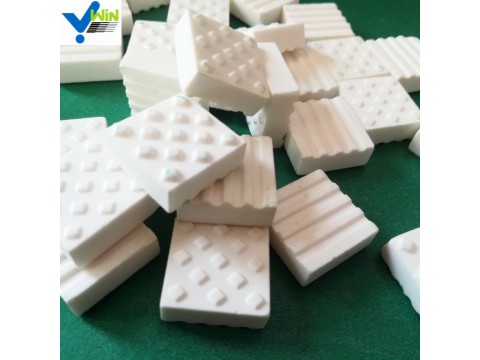

92% 95% alumina four-corner lining tile mosaic wear resistant
Application
1.Wear-resistant material for surfaces of delivery equipment such as Chutes / Hoppers, Cyclone separators,Elbows, Cyclones, Convey or pulleys.
2.Wear-resistant material for liquid flowing pipes of petroleum, mining, steel ,power
3.Anti-corrosion from chemical substances
4.Thermal impact
Tiling will ensure significant savings on equipment and labour by supplying innovative solutions. Our products are used extensively wherever material wear due to abrasion, impact, friction, heat or corrosion.
Chemical composition and physical properties
|
Performance Index |
92Series |
95Series |
|
Al2O3 |
>=92% |
>=95% |
|
Fe2O3 |
<=0.02 |
<=0.02 |
|
Compressive strength(Mpa) |
>=2000 |
>=2250 |
|
Hardness mohs |
>=9 |
>=9 |
|
Volume density(g/cm3) |
>=3.60 |
>=3.70 |
|
Water absorption(%) |
<=0.01 |
<=0.01 |
| Color of product |
white |
white |
The alumina ceramic square plate Dimension: length*length*thickness(mm)
10*10*3,10*10*4,10*10*5,10*10*6,10*10*8,10*10*10,17.5*17.5*3.2,17.5*17.5*4,17.5*17.5*5,17.5*17.5*6,17.5*17.5*8,17.5*17.5*10,17.5*17.5*15,20*20*4,20*20*5,20*20*6,20*20*8,20*20*10,20*20*15,24*24*10
Hexgonal ceramic plate:12*12*3,12*12*6,12*12*9,12*12*13
The alumina tiles are dispatched in strong carton with seperate paper card as buffering, palletised and shrink-wrapped for better conservation,being prepared for their immediate delivery.
Normally the standard package is 15-25KG/carton, 1-1.5tons/pallet,20-25tons for 20'container
Zibo Win-Ceramic Material Co., Ltd., located in Zibo city, Shandong province, provide excellent abrasion and impact resistance for Mining and Industry applications, focusing on the development of wear-resistant alumina ceramic brick,tile, ball etc. With more than ten years experience and 200 high skilled workers ,we produce more than 2000 tons alumina ceramic and related products per month.
