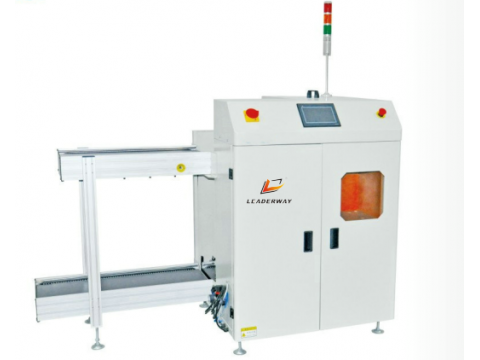

Professional production high quality PCB Sucking loader

PCB Sucking loader Strong, firm and stable design
■ HMI control panel, operating more simple
■ Top & bottom pneumatic clamps to secure magazine rack
■ No PCB breakage guaranty during loading & unloading
■ Adjustable suction positions provides better grips of PCBs
■ SMEMA compatible
Description
This unit is used for loading
of PCBs
Time Feed PCB
seconds 6 Approx
Magazine Change
Over Time
Approx.30 seconds
Maximum PCBs
Capacity
400 pcs(0.6 mm thick PCB)
Power Source & Consumption
100-230VAC(specify)，1ph,
300VA max
Air Pressure & Consumption
4-6 bar, 30 Ltr/min max
Conveyor Height & Direction
910±20mm (or specify) &
L→R / R→L(Option)
PCB Thickness
0.6 mm min
No. of Magazine
Upper Conveyor: 1magazine Lower
Conveyor: 1magazine(or specify)
Indexing Pitch
1-4(10mm pitch)
