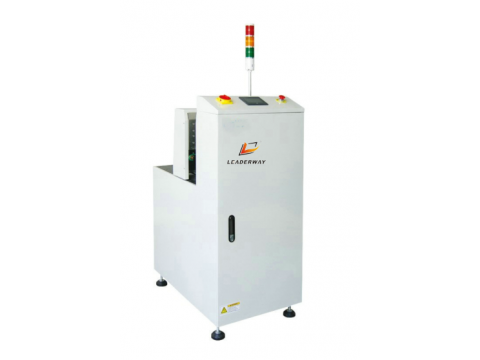

Click image to view original image
Features:
1. To fulfill the automation of SMT craft, which can save labors
2.Uninterupter loading the board.
3. LED screen interface control, easy to operate.
4.Width is adjustable by manual.
5.Mini size, less occupied area.
6.With SMEMA signal.
7. Automatic alarm function.
Specifications:
Dimentions 600×825×1200(mm) 700*925*1250(mm)
PCB size (50x50)~(450x350)(mm) (50x50)~(550x460)(mm)
PCB thickness min 0.6mm
Power AC 220V 50/60HZ
Air pressure 4-6 bar
Air supply Max.20L/Min
PCB capacity 300pcs(0.6mm thickness PCB)
Cycle time less than 8s
Transport Direction L-R or R-L(option)
Weight Approx.260Kgs
