Enclosed design with built-in torque limiter ensures highest level of safety
■ Top safety cover can be opened for easy access to hardware during maintenance
■ User friendly‘soft touch’LED membrane control panel
■ Smooth and precise rotation
■ Transfer gap between conveyors is minimised
■ PCB traffic flows can be customised
■ Smooth and parallel width adjustment (leadscrew)
■ SMEMA compatible
Description

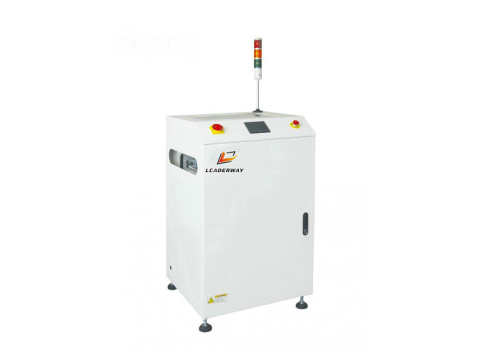

This unit is used to redirect PCBs flow in a production line
Cycle Time
Approx. 5 seconds
Power Source
100-230VAC(specify)，1ph
Power Consumption
250VA max
Air Pressure
4-6 bar
Air Consumption
10 Ltr/min max
Conveyor Height
910±20mm (or specify)
Conveyor Direction
L→R / R→L(Option)
