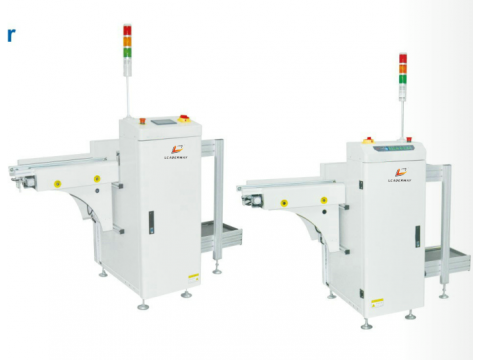

Click image to view original image
1, Dimensions: (L) 1700 * (W) 750 * (H) 1200mm
2. Overall structure: aluminum rack, seal plate spraying, color white computer
3. Rack Size: (L) 355 * (W) 320 * (H) 563mm
4. Use the PCB board size: length 350 * W (50-250mm)
5. Power: 220V / AC / 50-60HZ, compressed air: 5 ~ 6Kg / cm²
6. Fixed side: former fixed transmission direction: left to right
7. transfer height: 900 ± 20mm;
8. sent to board mode: Release cylinder push rod;
9. Lift pitches: 10, 20, 30, 40mm;
10. Control and Power: photoelectric sensors induction, AC motor brake positioning, programmable logic controller (PLC) control, automatic and manual mode, touch-LED user interface. Standard (SMEMA) line signal can be connected with other devices online
