| Item | Unit | K20 | K30 | K50 | K100 | K150 | K200 | K300 | K500 | |
| Flow | L/H | 1200 | 1800 | 3000 | 6000 | 9000 | 12000 | 18000 | 30000 | |
| Operating Vacuum Degree | MPa | -0.08 — -0.098 | ||||||||
| Working Pressure | MPa | ≤0.5 | ||||||||
| Temperature Range | ℃ | 20 — 80 | ||||||||
| Power supply | V | 380V/50Hz(or at user’s option) | ||||||||
| Working Noise | dB(A) | ≤65-78 | ||||||||
| Total Power | kW | 24+3 | 24+3 | 30+5 | 40+5 | 60+5 | 72+6 | 3*30+10 | 3*40+16 | |
| Pipeline Diameter | mm | 25 | 25 | 32 | 40 | 50 | 50 | 65 | 80 | |
| Net Weight | Kg | 400 | 450 | 550 | 700 | 850 | 1000 | 1200 | 2000 | |
| Overall Dimensions | L | cm | 107 | 107 | 120 | 152 | 175 | 175 | 180 | 220 |
| W | cm | 100 | 100 | 115 | 140 | 155 | 155 | 170 | 190 | |
| H | cm | 160 | 160 | 175 | 200 | 220 | 220 | 225 | 230 | |
| Water Content | % | No (GB/T260) | ||||||||
| Gas Content | % | ≤0.1 (GB/T423) | ||||||||
| Filtration Precision | μm | ≤10 | ||||||||
Application

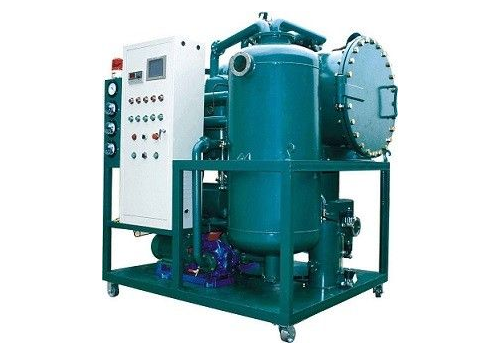

Used for purification treatment of high viscosity lubricating oil which is used in industries of mechanical engineering, metallurgy, mining, petroleum, chemistry and power plant etc. GZL machine can efficiently remove the water, impurities and harmful gas in the oil to improve the oil properties and recover its performance. It can be working online or working in circulation through preheating oil tank.
