STP/01-550-9 All-terrain High-pressure Fire Pump Truck

Click image to view original image
Brand: Sendvell
Price: 23837.00USD/set
Min.Order: 1 set
Supply 300 set
Delivery: Shipment within 20 days since the date of payment
Address: China
Valid until: Never Expire
Updated on: 2020-01-04 13:33
Hits: 164182
Buy
Company Detail


Details

Product Description

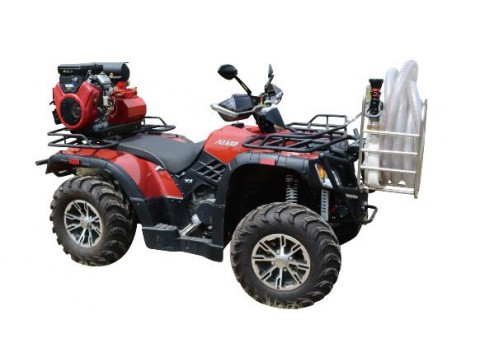

It is a four-wheel all-terrain motorcycle as a vehicle, and a eccentric pendulum high-pressure fire pump as a weapon.


Product features: strong mobility, small volume, reachable fire field, strong combat capability

The maximum lift can reach 400 m, the long-distance water supply can reach 3000m, and the self-suction distance is 7 m.

Strong adaptability: no requirement on water quality and can cooperate with fire extinguishing agent


Pump Parameter:

Note: Various types of pumps can be selected according to requirements


Item    Unit Parameter
Maximum flow rate M³/h 16
Rated pressure MPa 2.7
Maximum pressure MPa 3.5
Maximum suction range (self-priming) m 8
Maximum lift m 350
 Size mm 800x430x480
Water Intake Diameter mm 50
Water Outlet Diameter mm 40
Engine Pericom3864   V type double cylinder, 4 stroke, air- cooled
Rated power 17.1KW/23HP
Output volume 627CC

Vehicle parameter:


Item Unit Parameter
Size mm 2300x1175x1420
Net wight Kg 352
Rated load Kg 260
Maximum speed Km/h 96
Gradient ° 60
Tank volume L 18
Driving type Four wheel drive
Engine Single cylinder ,vertical, water-cooled ,4 stroke, infinitely variable speeds
