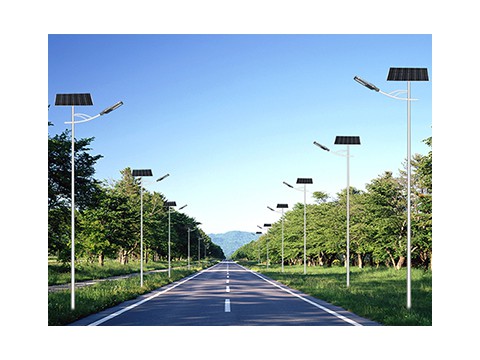

Street Light Solar
| Light pole: | High-quality steel, hot-dip galvanized, sprayed on the surface of the lamp body (color can be customized) |
| Power parameters: | 220V ± 10V / 50Hz-60Hz |
| Voltage: | ≤36V (inclusive) |
| Light cover material: | Acrylic |
| Light body material: | Aluminum |
| Light source type: | LED |
| Power: | 16W (inclusive) -20W (inclusive) |
| Irradiation area: | 15㎡-30㎡ |
| Lamp height: | 8~15 meters |
| Protection level: | IP65 |
| Warranty period: | 2 years |
1. This lamp holder show
| 17YS-D-LED004 | IP65 | |||||
| Lamp shape(L/W/H) | Power(W) | Material | Path width | Pole height | Pole distance | Ground illumination(LUX ) |
| 680/300/160 | 30/40/50/60 | All aluminum | 7m-llm | 5m/6m/7m | 15m-20m | Max26 Average17 |
| 810/320/210 | 70/80/100 | All aluminum | 12m-20m | 7m/8m/9m | 20m-30m | Max30 Average20 |
| 930/370/230 | 100/120/150 | All aluminum | 20m-30m | 10m/llm/12m | 30m-40m | Max40 Average30 |
2. Polycrystalline silicon solar photovoltaic panels make photoelectric conversion high efficient and fast charging
Solar cells: Polysilicon solar cells with high efficiency (17.5% or more) are packaged to ensure sufficient power generation of solar panels.
Glass: Low iron toughened suede GLASS (also known as white GLASS), with a thickness of 3.2mm and a transmittance of over 95%, has a high reflectivity for infrared light greater than 1200NM, and can withstand the radiation of ultraviolet light from the sun without decreasing the transmittance.
Rubber film EVA: The high-quality EVA film with a thickness of 0.78mm added with anti-ultraviolet agent, anti-gasification agent and curing agent is used as the sealant of solar cells and the connecting agent between glass and TPT, with high light transmittance and anti-aging ability.
Back glue TPT: The back of the solar cell is covered with fluoroplastic film, which is white and reflects sunlight. Therefore, the efficiency of
the component is slightly improved, and because of its high infrared emissivity, it can also reduce the working temperature of the component, which is also conducive to improving the efficiency of the component.Of course, the fluorine plastic film as solar cell packaging materials required by the aging, corrosion resistance, airtight and other basic requirements at first.
frame: The aluminum frame has high strength and strong mechanical impact resistance.
| Power | Optimum working voltage | Optimum working current | Short circuit current(A) | Open circuit voltage | Component size (mm) | Weight (Kg) | Operating temperature (℃) |
| 60W | 18 | 3.33 | 3.78 | 21.6 |
670*650*30 |
4.8 | -40〜85 |
3. Featured digital constant current controller / intelligent energy saving, high conversion rate and multi-time lighting control
Digital constant current controller features:
1. Full temperature-40-50℃, full power range, high precision, high efficiency and low power
2. Through the ultimate endurance test, to ensure reliability in extreme environments
3. Six hours programmable load power control
4. Intelligent battery charge and discharge management, intelligent energy-saving control
5. Temperature protection / photovoltaic cell polarity protection / overload protection / overcharge and overdischarge protection / battery polarity protection / sensor fault protection
6. Expandable infrared human body induction, voice-controlled microwave sensing. Remote communication control function.
| Power | Charging method | Applicable method | Discharge method | The output voltage | Maximum output / Charging current | Operating temperature |
| 120V/40W | pwm | Lead acid colloid | Boost constant current |
12V system: 17V-59V 24V system: 33V-60V |
2. 0A/10A | -35〜55 |
4. Built-in large-capacity gel battery / large-capacity power for long service life
Gel battery characteristics:
High and low temperature resistance: wide temperature range (lead acid: -25 ° C ~ 45 ° C; colloid: -25 ° C ~ 45 ° C), Suitable for indoor and outdoor use in various environments.
Long life: Nano-colloidal electrolyte, corrosion-resistant, no electrolyte layer, battery design life lead acid is greater than 12 years, colloid is greater than 15 years.
Charging efficiency: Low-resistance raw materials and advanced process design, small internal resistance, and strong low-current charging capability.
Recovery performance: It adopts flat-pole plate and special lead paste formula, low self-discharge rate and deep discharge, and has strong capacity recovery ability.
Green and environmental protection: The battery formula does not contain cadmium substances that are polluted by the environment and difficult to recycle. The colloidal electrolyte has no leakage, which truly guarantees the environmental protection and safety of the battery.
Comprehensive performance: Product design and quality control, R&D and production management follow high quality requirements.
| Name | Adapted power | Recharging current | Discharge parameter | Operating temperature℃ | Overcharge protection | Over discharge protection | Size and weight |
| Lead-acid batteries (colloid) | 50AH | 5A | 50W/14H |
Lead acid: -25℃~45℃ Colloid: -25℃~45℃ |
14.40±0.10v | ≥10.80±0.10v | 15.7kg |
5. Built-in maintenance-free lithium battery / high capacity 1000 times or more cycle charge and discharge
1. Digital intelligent detection operation, detecting the charge and discharge ratio to ensure normal lighting in rainy days.
2. Intelligent charging. Using light effect control, strong light fast charge and slow charge, to ensure efficient use of light energy.
3. Intelligent detection of matching light sources to effectively improve load efficiency.
4. Real-time reading of working status and writing working parameters on site.
5. Automatically detect overcharge and over discharge control and activate.
6. Relative to the battery, the lithium battery can be densely packed and has a high storage energy density. It has reached 460-600WH/KG, which is about 6-7 times that of lead-acid batteries.
7. Batteries with lithium ferrous phosphate as the positive charge and discharge through ICDOD. There are records that can be used 1000 times.
8. Self-discharge rate is low, no memory effect.
| Name | Load power | Load performance | Adapter PV module | Adapter battery | Size (MM) | Time |
| Lithium battery machine | 30W | 10 string 3 and 90mA | 60V | 20WH | 550*109*54 | 30W6h 20W10h |
6. Led solar street light equipment
The company has first-class LED series production equipment and testing equipment
LED solar energy production, testing, assembly workshop intelligent production line, testing equipment
Hengye LED production workshop has intelligent production automatic assembly line, all kinds of testing equipment. LED high-power placement machine, beading machine, CNC reflow soldering machine ensure high standard, high speed and high quality of LED intelligent production; which can ensure the normal operation of the lamp in a wide range of voltage levels; The detection system can quickly detect the light source parameters and issue the test report.
Large stock and Capacity guarantee
