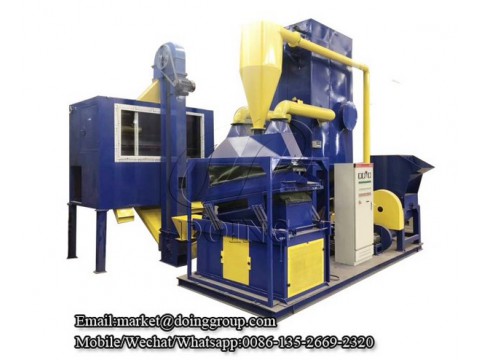

Copper cable wire recycling machine is special designed for
separating copper and plastic from scrap cable wires, which also called
copper wire granulator. The design features of copper wire granulator
as below :
1. Integrated type design, with compact structure, small land occupy size, easy to move to anywhere you want ;
2. Fully automatic PLC control, easy to operate, one operator is enough;
Design features of copper wire granulator
3.
The air separator adopts Italian air suspension separation technology,
both the vibration frequency and air supply could be accurately adjusted
according to the different materials.
4.
The crusher use SKD-11 alloy blades, the hardness is H85 degree, which
could ensure the good toughness under high wear resistance guarantee
with the alternated splayed structure. Also the crusher has the
circulation water cooling cover which could avoid the melting of the
material under high temperature caused by long time crushing.
5.
The whole process is under sealed structure with advanced pulse dust
collector, which could ensure no dust fly around during the operation.
6.
For very thin wires, like car wires which are less than 3mm, we also
have the electrostatic separator which could be equipped with the air
separator for further separation, thus to fully separate the thin copper
left with plastics.
DOING copper cable wire recycling machine
The whole process of copper cable wire recycling machine adopts dry type physical method, without using fire, water or chemical, thus no secondary pollution to the environment. With the process of electrostatic separation, the separation rate of copper cable wire recycling machine could reach to 99.9%, you can see no plastic in copper and no copper in plastic. The recycled copper is so pure that could be sold on the market directly or for further use.
Copper and plastic separated from scrap cable wires
We
DOING specialized in waste recycling machinery for 8 years, DOING
copper wire recycling machine is on factory price. For more details
about copper wire recycling machine, please feel free to contact us.
