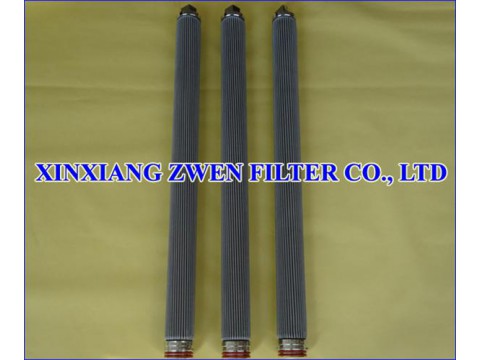

Pleated Sintered Fiber Felt Filter Element

Pleated Sintered Fiber Felt Filter Element Feature

1. Pleated sintered fiber felt filter element has large filter area

2. Pleated sintered fiber felt filter element is surface filtration and depth filtration

3. Pleated sintered fiber felt filter element has high dirt holding capacity because of three dimensional fiber structures of zwen sintered fiber felt

4. Pleated sintered fiber felt filter element has a very high filter efficiency because of differential fiber layers density gradients of zwen sintered fiber felt

5. Stainless steel fiber will not shed in filtration process

6. High porosity

7. High filter rating accuracy

8. High temperature resistance

9. High corrosion resistance

10. Pressure rise rate is slow in filtration process

11. Pressure loss is low in filtration process

12. High flow rate at low differential pressure

13. Washable and Cleanable

14. Reusable

15. Long service life

Pleated Sintered Fiber Felt Filter Element Technical Parameter

Raw Material: SS 316L, SS 304

Filter Rating: 1-300 Microns

Filter Efficiency: > 99.99 %

Operation Temperature: ≤ 816 ℃

Outside Diameter: 50 mm, 60 mm, 63.5 mm, 65 mm, 70 mm, 150 mm, 300 mm, 400 mm or others

Length: 127 mm, 254 mm, 508 mm, 762 mm, 1016 mm or others

Gasket: PTFE, Viton, Silicone, Buna-n, EPDM

Connector:

1. DOE

2. 220

3. 222

4. 226

5. Thread (NPT,BSP,G,M,R)

6. Flange

7. Special customization

Application

Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
