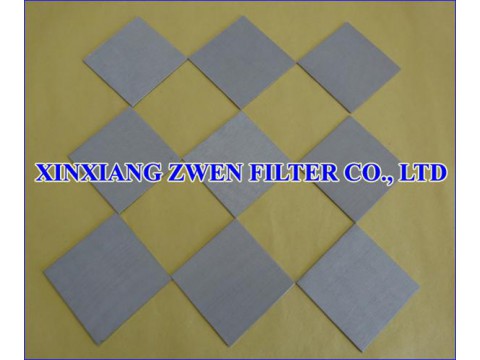

Sintered metal Filter Plate Feature
1. Sintered metal filter plate is made from multilayer wire mesh
2. Sintered metal filter plate is sintered in a high temperature vacuum furnace. So wire mesh will not shed
3. Sintered metal filter plate is a good filter media for surface filtration
4. Sintered metal filter plate is good for backwash because the pore passage of wire mesh aperture is very smooth
5. Sintered metal filter plate has uniform pore size distribution
6. High compression strength
7. High mechanical strength
8. High rigidity
9. High abrasion resistance
10. Good durability against most liquids, gases and aggressive steam
11. High temperature resistance
12. High filter rating accuracy
13. High filter efficiency
14. Good corrosion resistance
15. Washable and Cleanable
16. Reusable
17. Long service life
18. Easy to be welded, fabricated
19. Easy to be cutted into different shapes, such as circular, sheet
20. Easy to be made into different style, such as tube style, conical style, pleated style
Sintered metal Filter Plate Technical Parameter
Raw Material: SS 316L, SS 304
Filter Rating: 0.5-300 Microns
Filter Efficiency: > 99.99 %
Number of Layers: 2-20 Layers
Operation Temperature: ≤ 816 ℃
Length: ≤ 1200 mm
Width: ≤ 1000 mm
Regular Size: 500 mm*500 mm,500 mm*1000 mm,1000 mm*1000, 1200 mm*1000 mm or others
Thickness: 0.5 mm,1 mm,1.5 mm,2 mm,3 mm,5 mm or others
Application
Polyester filtration, polymer filtration, high viscosity filtration, fuels and lubricants filtration, oil filtration, steam filtration, high temperature gas filtration, high temperature liquid filtration, steam filtration, potable and process water filtration, beverages filtration, detergent filtration, solvents filtration, pharmaceutical industry, chemical industry, chemical fiber industry, food industry
