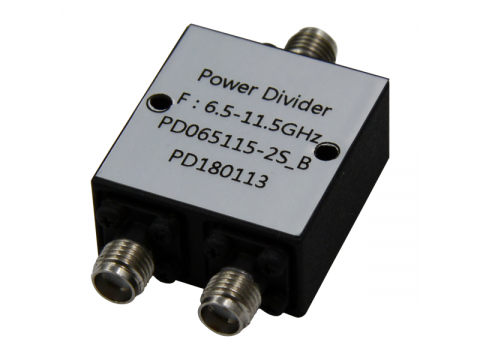

50 Ohm Wilkinson SMA-Female 2-way Power Divider From 6.5 to 11.5GHz Rated at 20Watts (CW)
Features
|
|
|
|
|
|
|
|
Electrical Specifications （For more Power Divider products information, please click Power Divider)
| Description | Minimum | Typical | Maximum | Units | Condition |
| Freq. Range | 6.5 | 11.5 | GHz | ||
| Nominal Splitter Loss | 3.0 | dB | |||
| Insertion Loss | 0.6 | dB | Excluding Nominal Splitter Loss 3.0dB | ||
| Input VSWR | 1.4 | ||||
| Output VSWR | 1.3 | ||||
| Amplitude Balance | 0.2 | dB | #1 | ||
| Phase Balance | 4 | deg | #2 | ||
| Isolation | 18 | dB | |||
| Forward Power | 20 | W | CW | ||
| Reverse Power | 2 | W | CW | ||
| Peak Power | 0.5 | KW | P-P | ||
| Impedance | 50 | Ohms | |||
| Operating Temp. | -45 | +85 | ℃ | Relative Humidity 5 to 95% |
