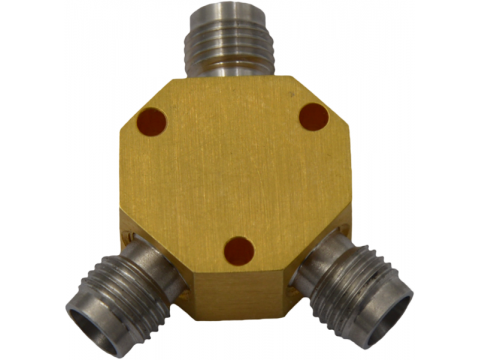

50 Ohm Wilkinson 1.85mm-Female 2-way Power Divider From DC to 67GHz Rated at 1Watts (CW)
Features
|
|
|
|
|
|
|
|
Electrical Specifications （For more Power Divider products information, please click Power Divider)
| Description | Minimum | Typical | Maximum | Units | Condition |
| Freq. Range | DC | 67 | GHz | ||
| Nominal Splitter Loss | 6.0 | dB | |||
| Insertion Loss | 1.5 | dB | Excluding Nominal Splitter Loss 6.0dB | ||
| Input VSWR | 1.7 | ||||
| Output VSWR | 2.5 | ||||
| Amplitude Balance | 1.0 | dB | #1 | ||
| Phase Balance | 8 | deg | #2 | ||
| Isolation | 10 | dB | |||
| Forward Power | 1 | W | CW | ||
| Reverse Power | - | W | CW | ||
| Peak Power | - | KW | P-P | ||
| Impedance | 50 | Ohms | |||
| Operating Temp. | -45 | +85 | ℃ | Relative Humidity 5 to 95% |
