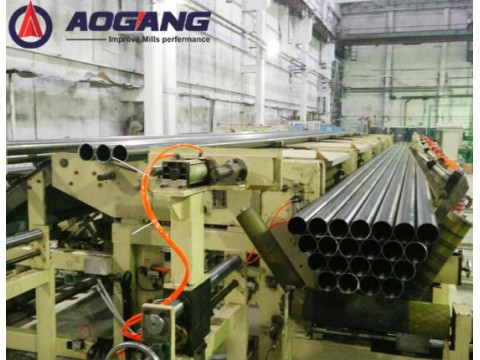

Automatic Packing Machine

The pipes are transported to the packing area by the run-out table:

The pipes will be turned to the packing machine chain transportation device by the pipe turning device and then moved to the pipe counting position;

The system has the set program that how many pieces of pipes will needed in a bundle for different sizes,then the system will send order to the machine counting and accumulating the pipes layer by layer until enough pipes are collected；the pipe collecting device will go down the height of one layer when one layer of pipes are collected and pushed to the collecting device；there is also one end alignment device at one end;

The whole bundle of pipes will be moved to the bundling position by the transporting car,then the collecting device will return to the collecting position waiting for a new bundle;
