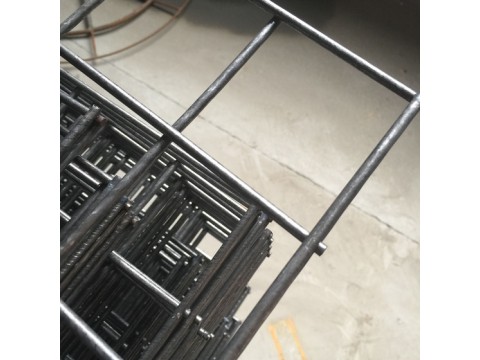

Welded wire mesh panel is made of superior quality carbon steel wire, electro galvanized wire, hot dipped galvanized wire or Pvc coated wire.
Welded wire mesh panel is made of superior quality carbon steel wire, electro galvanized wire, hot dipped galvanized wire or Pvc coated wire. It is also supplied in plain steel or rebar without galvanizing to save cost.
Applications: Welded wire mesh panel are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body. It also used as wire fencing, animal cage or fence and fence in agriculture etc.
| Opening (Mesh) | Wire Diameter‹BWG› | |
| In inch | In metric unit(mm) | |
| 1” x 1” | 25x25mm | 14# - 11# |
| 2” x 1” | 50x25mm | 14# - 8# |
| 2”x 2” | 50x50mm | 14# - 8# |
| 3” x 2” | 75x50mm | 14# - 6# |
| 3” x 3” | 75x50mm | 14# - 6# |
| 4” x 2” | 100x50mm | 14# - 4# |
| 4” x 4” | 100x100mm | 14# - 4# |
| 5” x 5” | 125x125mm | 14# - 4# |
| 6” x 6” | 150mm×150mm | 14# - 4# |
|
Technical Note: 1.Standard roll length: 30m; width: 0.5m to 1.8m 2.Special sizes can be customized 3.Packing: in waterproof paper in rolls. |
||
