Product Description

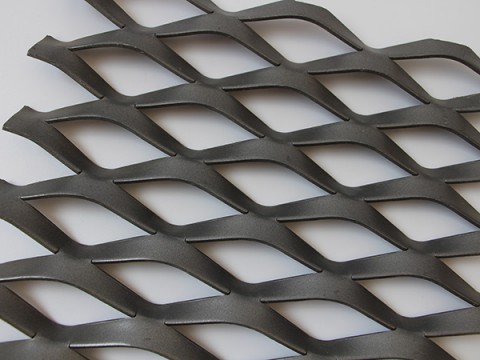

Aluminum expanded metal is also called stretch mesh. It is made of the original plate which adopt the latest technology to cut and expand. It is stronger, lighter in weight and more rigid than the original base metal. Diamond-shaped holes are the most popular. And other hole types include hexagonal, round holes, triangular, and fish scale holes. Widely used in home, agriculture, construction, medicine, filtration, protection, insect prevention, crafts manufacturing, etc.
Material: Aluminum plate, aluminum alloy plate.
Oxidation color aluminum expanded metal mesh
Range of thickness: 04mm—1.0mm 0.8mm—1.0mm 0.3mm—1.5mm 0.1mm—9mm
Aperture: 0.5x1mm, 1x2mm, 1.25x2.5mm, 1.5x2.5mm, 1.6x3.2mm, 2x3mm, 3x4mm, 3*5mm, 3*6mm, 4*8mm, 5*10mm, 6*12mm, 8*16mm, 10*20mm, 12*25mm, 15*30mm, 20x40mm, 25x50mm, 30x60mm, 40x80mm, 50x100mm, etc .Hexagonal hole; Fish scale hole (for use in lampblack hood)
Surface Treatment: baking paint, anodizing, spraying, fluorocarbon spraying etc
Characteristics: Not easy to rust, beautiful color,elegant appearance;
The panel is lightweight and has strong bearing capacity,sturdy and durable, high safety performance.
