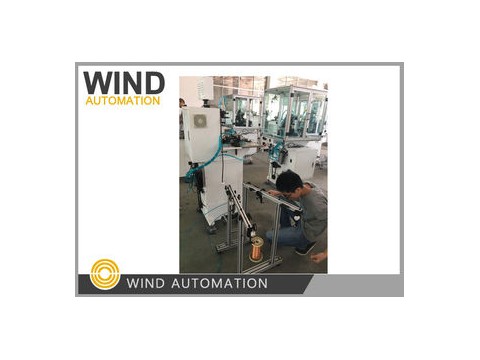

Needle Winding Machine Used In Laboratory For Production Prototypes Of Stators WIND-1-TSM
Application:
WIND-1-TSM is a basic internal stator needle winding machine to be used in laboratory for production of
prototypes of stators covering 6poles,8poles,9poles,10poles,12poles,14poles,18poles, such as
Stepping Motor,Brushless DC Motor Muti Poles Stator
Competitive Advantages:
1. Easy to change tooling for types of stators, basic and smart device for needle winding one slot by one
2. Can handle big and small mutipole BLDC stators with Min. opending slot size 1mm
3. For stator inding machine type WIND-1-TSM,
stator with 6poles, 8poles and 9 poles can use same winding machine by changing tooling,
stator with 10poles, 12poles, 14 poles can use same winding machine by changing the tooling
4. Very suitable for the BLDC motor manufacturers who can invest for small quantity products
Needle Winder Techanical Specification:
Wire diameter: 0.08~1.20mm
Turns No.0-99999
Stator ID:9~65mm Stack height:7-115mm
Stator Min Slot size : 1mm
Min. Needle Nozzle Size:3*0.35*8.5mm
Operation option: stepping/Auto
Stator poles: 6 poles, 8 poles, 9poles,10poles,12 poles,14pole,18poles (Customized)
Air pressure:0.5~0.7MPa Power:1KW, AC220V 50/60Hz
Weight: about 350kgs Dimension: 1600(L)x900(W)x1450(H)mm
Productivity: Per stator opening of slot 1mm, suggest speed below 350RPM
Question and Answer:
1. Which type of stator needle winding shall we select for our stator?
The machine WIND-1-TSM is widely used for 6 poles, 8 poles, 9 pole, 10 poles, 12 poles, 14 poles and
18 poles
Stepper motor and BLDC motor with Single phase or three phase
Machine Winding, Indexing and Cutting automatically without arraying for slot filling rate not high stator
The winding machine WIND-1-TSM with winding not arrraying automatic indexing deviceand angle swing
cam device is very suitable for winding big and small wire , heave or light BLDC motor stators
For machine tranining, usually you send one engineer people to our plant to inspect before delivery,
3. Is the machine from you is switched on and put into operation?
Yes, machine is switched on from machine side for power on machine and
Start, Emergency button , Auto/Step swith to operate machine
4. I have not wound stator. Why do you need for wound stator?
Below samples and drawing are needed for machine manufacturing and commissioning:
1. Stator stack 5pcs without winding with insulation cap or isolation paper
2. Wound stator 1pc
3. Copper wire 1 roll enough for winding 10pcs stators
4. Stator lamination drawing and winding drawing
