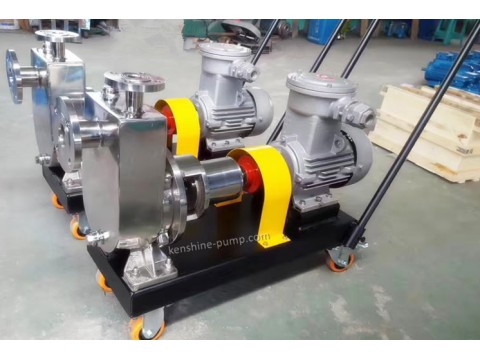

JMZ Stainless steel self priming centrifugal pump

Click image to view original image

Brand:	kenshine-pump
self priming pump：	suction height 4m
centrifugal pump：	transfer pump
chemical pump：	circulating pump
Price:	850.00USD/Unit
Min.Order:	1 Unit
Supply	1000 Unit
Delivery:	Shipment within 10 days since the date of payment
Address:	China
Valid until:	Never Expire
Updated on:	2019-08-08 17:47
Hits:	28719

Company Detail

Kenshine Pump And Valve MFG Co.,LTD
[Credit File]
Already 0.00 USDSecurity deposit
ContactsShine Xin(Ms.) 201108
Member [Offline] [Add to my friend] [Send mail]
Phone
Mobile
AreaChina
AddressYindu Road, Minhang District,Shanghai,CHINA

Details

JMZ mobile self priming pump adopts new mechanical seal assembly, safe and explosion-proof, no leakage for a long time. JMZ mobile self priming pump is suitable for conveying all kinds of wine, beverage, dairy, pharmaceutical, gasoline, solvent oil, syrup etc at the temperature from -35 to 120 degree Celsius. This pump has the characteristics of compact structure, easy operation, small volume, light weight, stable performance, no bottom valve, no filling water when starting etc. This pump can be used to transport concentrated slurry, acid, alkali, salt and other liquids after replacing 3-4 parts.
The pump performance range: flow of 3m3/h-200m3/h, head of 15m-60m, diameter of 25mm-2000mm

Model	Inlet(mm)	outlet(mm)	Flow rate(m3/h)	Head(m)	Suction height(m)	Speed(rpm)
25JMZ-22	25	25	3	22	5	2900
25JMZ-30	25	25	3	30	6	2900
40JMZ-22	40	25	6	22	5	2900
40JMZ-30	40	25	6	30	6	2900
40JMZ-40	40	25	6	40	6	2900
50JMZ-22	50	40	12	22	5	2900
50JMZ-30T	50	50	20	30	6	2900
50JMZ-40	50	40	12	40	6	2900
65JMZ-22	65	50	24	22	5	2900
65JMZ-30T	65	65	30	30	6	2900
80JMZ-22	80	65	48	22	5	2900
80JMZ-30	80	65	48	30	6	2900
100JMZ-22	100	80	80	22	5	2900
100JMZ-30	100	80	100	30	5	2900
150JMZ-22	150	125	160	22	5	2900
150JMZ-30	150	125	160	30	5	2900
200JMZ-22	200	150	200	22	5	1450
200JMZ-30	200	150	200	30	5	1450
