Duct manufacture super line 3, duct machine, duct forming machine, Duct Production Line

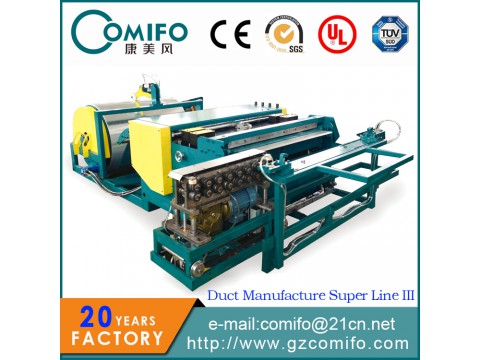

Super line III consists of cradle style decoiler , straightening , beading , punching , notching ,folding , hydraulic shearing and pittsburgh lock forming type 1 ( forms pittsburgh lock ) . It processes maximum coil with 1300mm or 1600mm galvanized steel for 18 to 30 gague material into blank for TDF integrated flange duct , TTF /LT mate flange duct or angle iron flange duct .

Model No.	Max Coil Width	Thickness Range	Speed	Shearing Tolerance	Diagonal Tolerance
CSL3-1.2x1300	1300mm	0.4-1.2mm	0-18m/min	±0.5mm	±0.5mm
CSL3-1.2x1600	1600mm	0.4-1.2mm	0-18m/min	±0.5mm	±0.5mm

Features :

1. Motor driven decoiling , selectable coils stand by , maximum capacity of 5-ton per station ( optional : up to 10-ton per station )

2. Bends right angle lock

3. Pittsburgh lock former , forms pittsburgh lock

4. Optimizes floor space by inline position of machines , guarantees high efficiency

5. Accurate PLC control unit , preset available profiles and folding style , notching size , punching size , cutting dimension on touchscreen

Stations:

coil - straightening - beading - punching square - notching - folding - shearing - pittsburgh lock forming
