Product features:
According to the biological characteristics of different pests, the unique design of the upper
and lower lamps, attracts and traps the pest from multi-angles, which works much more
efficiently
than the ordinary one.
Mainly targeted pests:
Rice
planthopper (Brown planthopper, white-backed planthopper and gray planthopper),
rice stem borer, rice leaf roller, tea green cockroach, Ectropis, tea
caterpillar.
Other pests:
Noctuids (rice blast, big cockroach), leaf mites (black-tailed spider mites, electro-optic leaf mites and white-winged crickets), mites (large green pheasant, banmit mites and rims, etc.), moths (tea leaf moth, tea leaf moth, etc.), toxic moths (brown-green moth, yellow moth and brown moth, etc.), poisonous moths (tea white moth, tea black moth, etc.).
Application areas:
Rice and tea plantation, farmland of other crops.

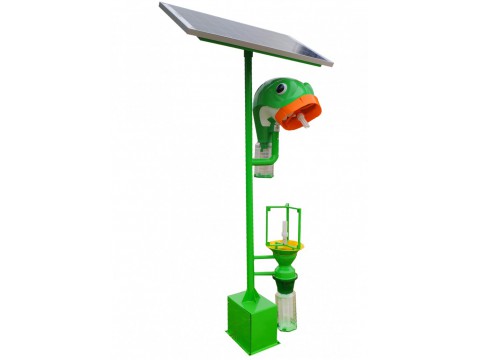

3BCT-53-300-H-S
Sizes:
1200*800*2700mm
Trapping devices
Upper trap
material
ABS case.
Suction port
diameter: 300mm.
Working principle
The suction
port and the trap lamp are installed at an angle downward. The light attracts
insects towards the suction port. And the insects get sucked into the
collecting box by the negative pressure of air, generated by the rotation of
the fan.
Lower trap
material
Galvanized
or stainless steel
Suction port
diameter: 300mm
Working
principle
same as the
upper trap
Pole
material
Galvanized
steel pipe surface sprayed，diameter≥60mm, thickness≥2mm
Sucking
device
motor
type
Brushless DC
motor, protection class: IP44
upper
DV12V,
rated power:
23W
lower
DV12V,
rated power:
6W
Fan blades
material
ABC
Upper
Diameter:
285mm
lower
Diameter:
130mm
Trapping
device
Light source
Energy-saving
insect attracting lamp
DV12V, 2U
type 9-10W，3U type 12-14W
baffle
Upper trap
/
Lower trap
Transparent
PVC
Power supply
unit
solar panel
type
Monocrystalline
silicon
voltage
DC18V
power
140W
Battery
type
Colloid,
maintenance free
voltage
DC12V
capacity
100AH
control
type
DC12V/24V,
intelligent control, protection grade: IP67
Collecting
device
Insect
collecting box
Transparent
PVC，
sizes:
160*160*300mm
Trapping
coverage
20-30
acres/unit
Working condition: -35-80 °C
