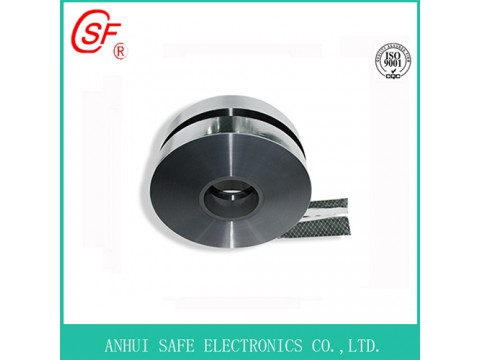

1.We mainly offer finished capacitor film: Aluminum/Zinc metallized film with reinforced edgefor capacitors used.
2.We can supply you metallized polyester/Polypropylene Film for capacitors(MPET/MPP film) .
3. We also can offer you Capacitor Polypropylene Rough film type RPP/RRPP.
| Technical specifications | |
| Model | MPP(metallized Polypropylene Film) |
| Material | BOPP |
| Hardness | Soft |
| Transparency | Opaque |
| Processing Type | Multiple Extrusion |
| Thickness | 1.6-15um |
| Width | 4.5-130mm |
| Density | 0.905±0.005 g/cm3 |
| MOQ | 1 kilogram |
| Margin Value | 0.4mm 1mm 1.5mm 2mm 2.5mm |
| Production Capacity | 120 Tons Per Month |
| Types of Matallized Layer | Al/Zn metallized Film, Al Metllized Film |
| Size | Available on Request (Customized metallized Film) |
*Dimensions(mm)*
| Item |
Thickness (um) |
Width(mm) | Margin Value(mm) | ID(mm) | OD(mm) |
| metallized Polypropylene Film |
2.0,2.2,2.3,2.4,2.8,2.9,3,4,5,6,7, 8,9,10,12 |
14 ,17.5,21,26,30,35, 37.5,40,45,50,55,60, 65,70,75,80,85,90, 95,100,115,120,125,130 |
3.0, 2.5 , 2.0, 1.5,1.0 | 75 |
180,240, 320 |
*Application*
Applied to capacitors for power system, refrigerators and air conditioners.
*Specifications of metallized film*
*Cores:
Material:Plastic
Width:Film Slit Width±0.3mm
Inner Diameter:75mm +1.0mm/-0.5mm
*Packaging & Delivery*
Packaging: Pallets
Packaging Details: Vacuum Aluminum Package (metallized Film Export Standard Carton)
Delivery Detail: 7~10 days after payment
Port: Shanghai or Ningbo
