Spodoptera frugiperda（fall army worm） light and sexual attraction integrated monitoring trap

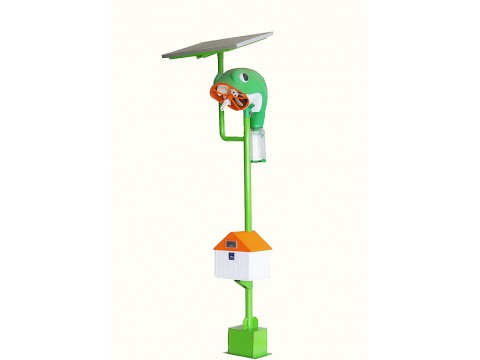

Solar fall armyworm monitoring trap 3BCT-28-APF
Product introduction: Spodoptera frugiperda, known as fall army worm, is a night-time migratory pest that seriously harms staple crops such as maize. Use electromechanical & wireless transmission technology, Internet of Things, photo-inducing & sex pheromone, to construct a set of ecological monitoring and early warning system for Spodoptera frugiperda, which realizes pest-oriented attraction, real-time monitoring, intelligent early warning and forecasting functions.
Product features:
1. light-induced, sexually induced integration; the combination of the special light source and the sexual attractant of Spodoptera frugiperda greatly improves the efficiency of attraction and detection.
2. Real-time remote monitoring: The test data is transmitted to the users’ mobile APP or computer in real time, to monitor the situation of the trap anytime, anywhere.
3. Stable performance and systematic and high efficiency: The product is safe and reliable, with a long service life, basically maintenance-free; easy to operate.
3BCT-28-APF
sizes
1050*800*2700mm
attractant
Spodoptera frugiperda pheromone
Sucking devices case
Anti-UV and anti-aging ABS，suction port diameter: 300mm
Fan blades
ABS，diameter:
280mm
motor
Brushless DC motor，DC12V,
rated power:23W
Energy-saving insect attracting lamp
DC12V，12-14W
Solar panel
Monocrystalline silicon，voltage：DC18V，power：150W
battery
Colloid, maintenance free, 100AH
control
Light control, rain control, time
control, automatic charge and discharge protection, working condition:-35℃~55℃，protection grade：IP67
pole
Galvanized steel pipe surface
sprayed. diameter≥60mm，thickness≥2.0mm
Insect collecting box
Transparent PC, sizes：160×160×300mm
Internet of things (IOT)+camera
1.IOT remote control service content
(mobile GPRS module signal)
a. Remote control: control the switch
device remotely by the mobile APP or computer (use the icons to corresponding
switch status)
2. Camera parameters:
a. DC12V, 7.5/22W 2 million pixels, 5x
zoom, focal length: 3.6mm, ABS material protection grade: IP66.
b. 4G card storage, mobile APP and
computer client visible, play Real-time monitoring of insects
b. Remote monitoring: solar panel voltage, battery voltage, load current,
charging and discharging power
c. Save the database: Mysql database and the historical data of the last
fifteen days of all devices, operation log, login log and user's data
information, the latest parameters of the device remote reading parameters,
etc.
d. Time switch: According to customer needs, customer service can set the
start time and how long after the delay (1-12 hours)
e. Electronic map: Real-time information on whether the equipment is online,
running, fault (equipment parameters) to accurately grasp the information of
the equipment for maintenance
f. Failure notification: Real-time report, "green light" means
online, "gray light" means offline
g. Control: time control, rain control, light control, temperature control
