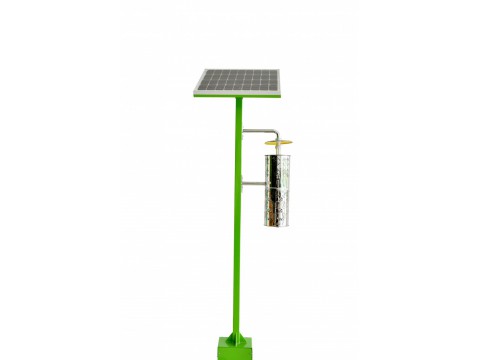

Solar insect trap 3BCT-15、3BCT-16
Product features:
based on the normal trap, simplify the structure, use special light source to attract pests, high effect on coleopteran pests, economical.
Application areas: farmland of various crops, agriculture
3BCT-15
3BCT-16
sizes
550*710*2300mm
550*700*2300mm
Trapping
device
material
Galvanized
steel，suction port sizes: 245*245mm
Stainless
steel，suction port diameter: 190mm
Working
principle
Pests are
attracted by special light, and then sucked into the insect collecting box by
the baffle blocking and the negative air pressure generated by the fan.
pole
material
Galvanized
square tube
Suction
device
motor
type
Energy-saving
brushless DC motor, protection grade: IP67
Voltage,
power
DV12V,
6W
Fan blades
material
PC
diameter
130mm
Energy-saving
insect attracting lamp
DV12V, U2
type 9-10W，3U type 12-14W
Power supply
unit
Solar panel
type
Monocrystalline
or polycrystalline silicon
voltage
DC18V
power
40W
battery
type
Colloid, maintenance
free,
voltage
DC12V
capacity
24AH
control
type
DC12V/24V,
intelligent control, protection grade: IP67
Collecting
device
Insect
collecting bag
Polyethylene,
sizes:140*140*350mm
40 hole
stainless steel mesh，
sizes：190*300mm
Trapping
coverage
15-20
acres/unit
For more application photos, please visit our website at: https://www.benyeshares.com
Working condition: -35-80 °C
