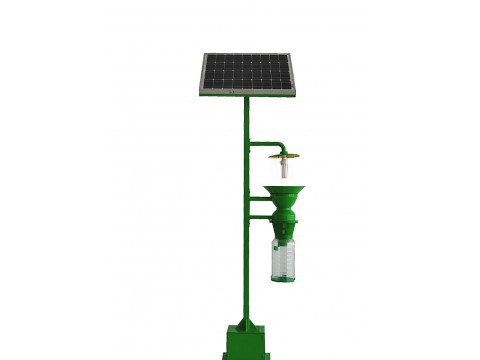

solar energy insect trap portable for garden agriculture green house

Click image to view original image

Brand:	BENYE
Sloar panel：	monocrystaline silicon,18v/140w
Battery：	Colloid,12V/24AH
Light：	patent 2U lamp 12V/10w
Price:	350.00USD/set
Min.Order:	1 set
Supply	5000 set
Delivery:	Shipment within days since the date of payment
Address:	China
Valid until:	Never Expire
Updated on:	2019-08-18 09:45
Hits:	163151

Company Detail

Hunan Benye Green Control Technology Co.,Ltd.
Already 0.00 USDSecurity deposit
ContactsJack(Mr.)
Member [Offline] [Add to my friend] [Send mail]
Phone
AreaChina
AddressEast second road, Huaihua Hi-tech industrial park, Huaihua, Hunan province, China

Details

Solar insect trap 3BCT-18-300

Product features:

based on the normal trap, simplify the structure, use special light source to attract pests, more economical.

Application areas: farmland of various crops, agriculture

specifications			3BCT-18-300
sizes			5507102300mm
Trapping devices		material	Galvanized or stainless steel case, suction port diameter:300mm
Trapping devices		w/p	Pests are attracted by special light, and then sucked into the insect collecting box by the baffle blocking and the negative air pressure generated by the fan.
Pole		mat	Galvanized square tube, surface sprayed
Suction device	motor	type	Energy-saving brushless DC motor, protection grade: IP67
		voltage	DV12V,
		power	6W
	Fan blades	mat	ABS
	Fan blades	diameter	130mm
Attracting device	Light source	Energy-saving insect attracting lamp	DV12V, 2U type 9-10W
Power supply unit	Solar panel	type	Monocrystalline silicon
		voltage	DC18V
		power	40W
	battery	type	Colloids, maintenance free,
		voltage	DC12V
		capacity	24AH
	control	type	DC12V/24V, intelligent control, protection grade: IP67 Working condition -35-80 °C
Collecting devices	Insect collecting bag		Transparent PVC，sizes:160160300mm
Trapping coverage			10-15 acres/unit
