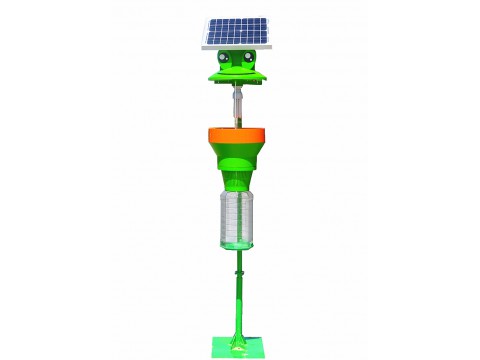

Solar insect trap 3BCT-10-L、BCT-10-H
Product features: simplified structure, easy to install, with certain light source to attract pests, especially effective to the small ones, more economical.
Application areas: rice and vegetable plantation, and others crops.
specifications
3BCT-10-L
3BCT-10-H
sizes
390*340*1500mm
Trapping devices
material
Plastic case，suction port diameter：280mm
w/p
Pests are
attracted by special light, and then sucked into the insect collecting box by
the baffle blocking and the negative air pressure generated by the fan.
Pole
mat
Galvanized
pipe, surface sprayed
Suction device
motor
type
Energy-saving
brushless DC motor, protection grade: IP67
voltage
DV12V,
power
3W
6W
Fan blades
mat
ABS
diameter
92mm
Attracting
device
Light source
Energy-saving
insect attracting lamp
DV12V, 2U
type 7W
DV12V, 2U
type 12W
Power supply
unit
Solar panel
type
Monocrystalline
or polycrystalline silicon
voltage
DC18V
power
20W
40W
battery
type
lithium, maintenance
free,
voltage
DC12V
capacity
10AH
20AH
control
type
DC12V/24V,
intelligent control, protection grade: IP67
Collecting
devices
Insect
collecting bag
Transparent
PVC，sizes:160*160*300mm
Trapping
coverage
10
acres/unit
10-15
acres/unit
Working condition -35-80 °C
