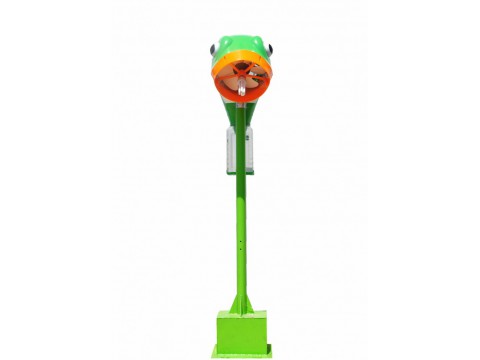

AC insect trap 3BCD-50
Product features:
AC power is more
stable than solar energy, for the later mainly depending on time of sunlight. And
also working time of the trap can be controlled according to actual needs.
Application areas: farmland of various crops, agriculture.
specifications
3BCD-50
sizes
300*580*2000mm
Trapping devices
trap
mat
ABS，suction port diameter：300mm
w/p
Pests are
attracted by special light source, and then sucked into the insect collecting
box by the baffle blocking and the negative air pressure generated by the
fan.
pole
mat
Galvanized
pipe surface sprayed.
Suction
devices
motor
type
50Hz DC
motor, protection grade：IP44
voltage
AC220V
power
23W
Fan blades
mat
ABS
diameter
285mm
Attracting
light source
Energy-saving
insect attracting lamp
DV12V, 2U
type 9-10W, 3U type 12-14W
control
type
Working condition：-35—80℃
Insect
collecting box
Transparent
PVC，sizes:160*160*300mm
Trapping
coverage
15-20
acres/unit
