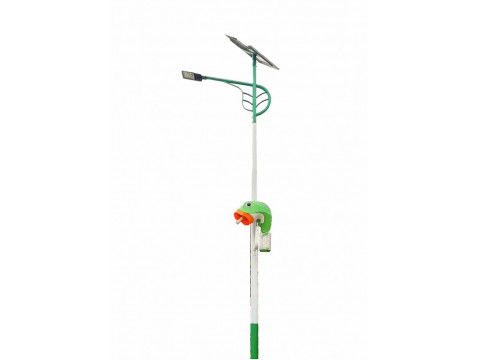

Solar insect trap street light BLDT-60
Product feature:
Combination of solar street light and insect trap, it has two control systems, which enable illumination and insect trap working independently, and accordingly.
Application areas: communities, parks, tourism resorts, hotels, urban and rural areas.
specifications
BLDT-60
Light source
mat
Die-cast
aluminum case，protection grade：IP65
power
Optional,
with Single 1W high efficiency LED lamp bead
Trapping devices
trap
mat
ABS case，suction port diameter：300mm
w/p
The suction
port and the trap lamp are installed at an angle downward. The light lures Insects
towards the suction port. And the insects get sucked into the collecting box
by the negative pressure of the air, generated by the rotation of the fan.
pole
mat
Q235
high-quality steel plate roll forming at one time, automatic submerged arc
welding; battery board bracket: hot-dip galvanizing and electrostatic spray.
height
6-10M
Suction
devices
motor
type
Energy-saving
brushless AC motor, protection grade: IP44
voltage
DV12V
power
23W
Fan blades
mat
ABS
diameter
285mm
Attracting
devices
Energy-saving
insect attracting lamp
DV12V, 2U
type 9-10W， 3U type 12-14W
Power supply
unit
Solar
panel
type
Monocrystalline
or polycrystalline silicon
voltage
DC18V
power
120-240W
battery
type
Colloid,
maintenance free
voltage
DC12V
capacity
100-200AH
control
type
DC12V/24V,
intelligent water proof control，protection grade:IP67
Working
condition：-35—80℃
Collecting
devices
Insect
collecting box
Transparent
PVC，sizes:160*160*300mm
Trapping
coverage
15-20
acres/unit
